Components Location

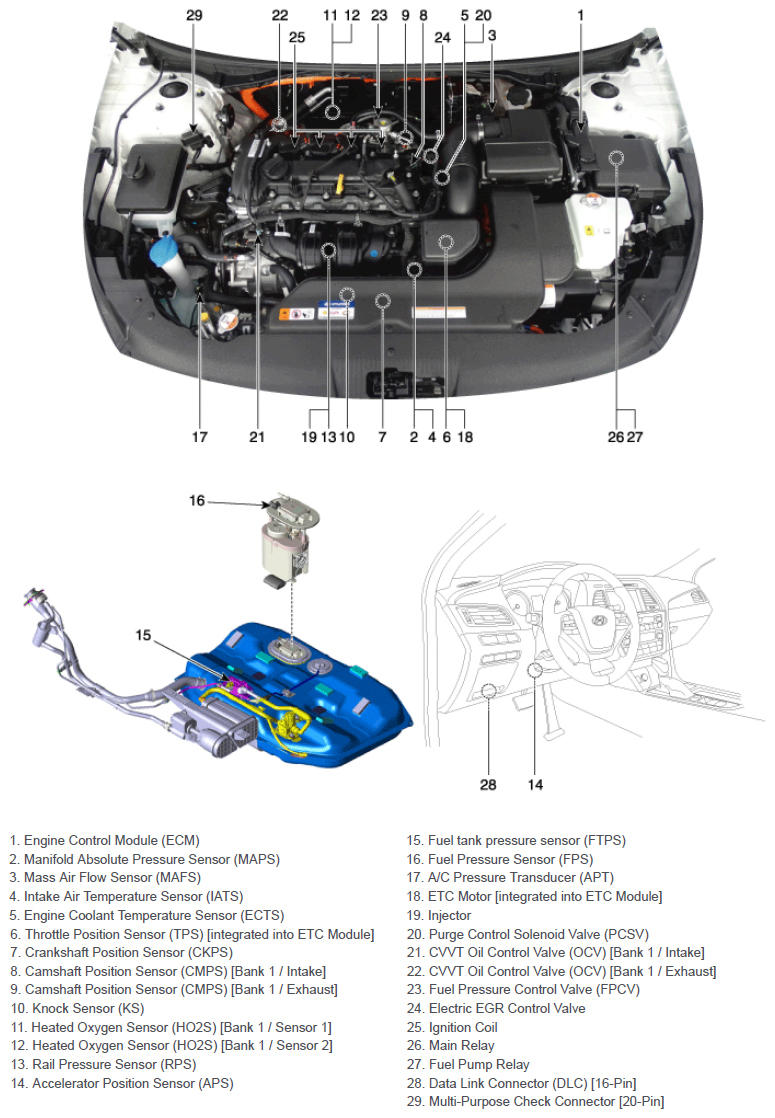

G12787053Courtesy of HYUNDAI MOTOR AMERICA

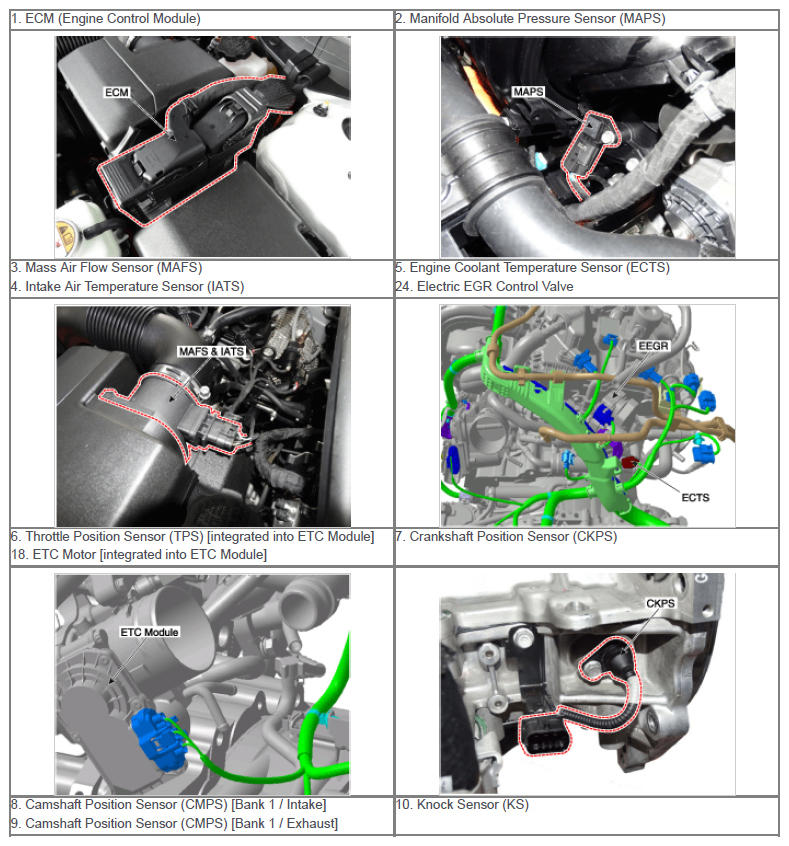

G12787054Courtesy of HYUNDAI MOTOR AMERICA

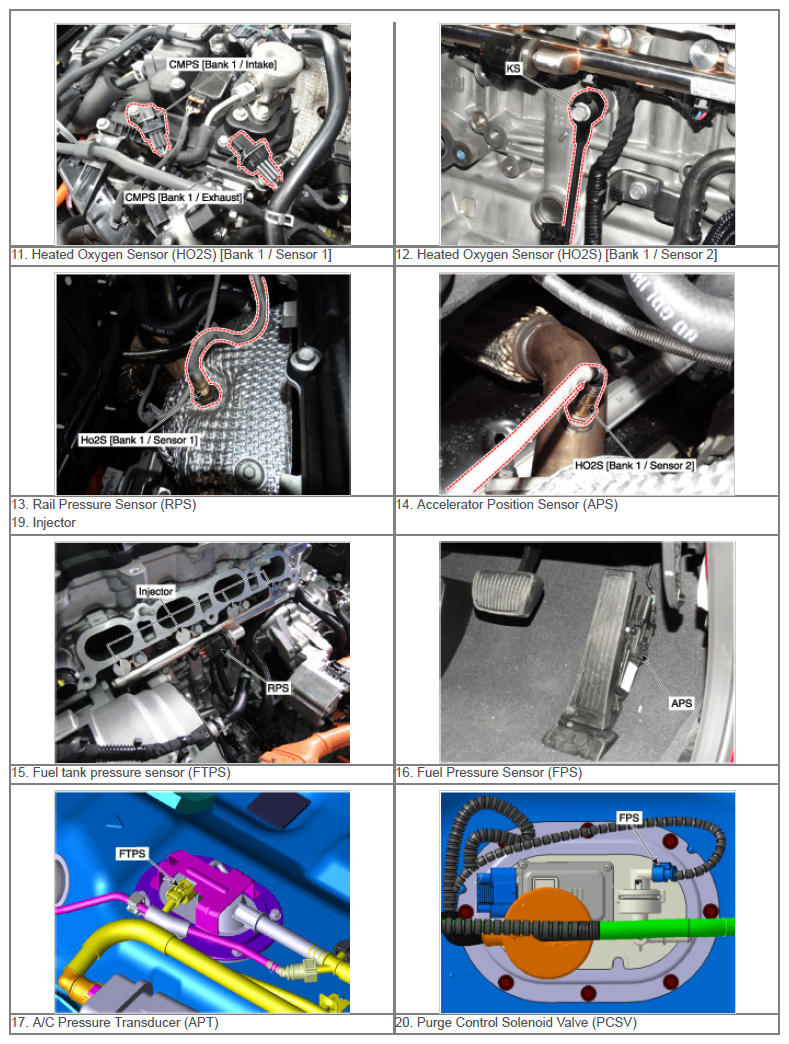

G12787055Courtesy of HYUNDAI MOTOR AMERICA

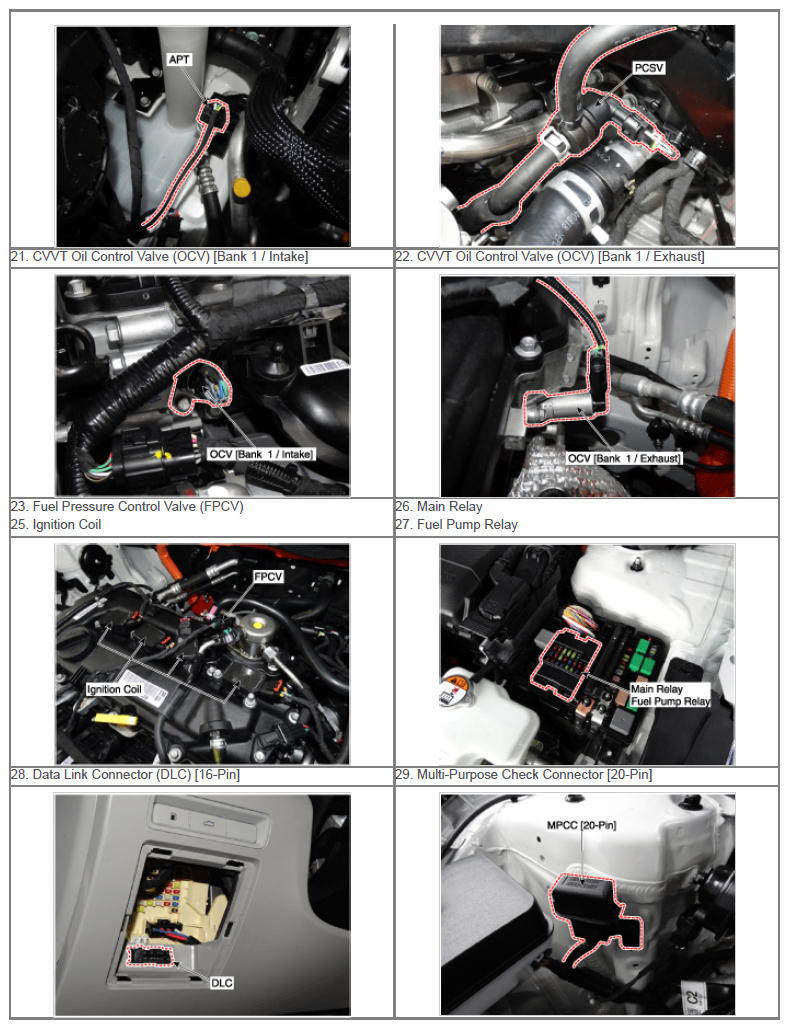

G12787056Courtesy of HYUNDAI MOTOR AMERICA
