Repair Procedures: Removal

Turn ignition switch OFF and disconnect the negative (-) battery terminal.
Remove the air cleaner assembly and air duct. (Refer to "AIR CLEANER ")
Shut off the high voltage circuit (Refer to "HIGH VOLTAGE SHUTOFF PROCEDURE ").
Remove the HPCU. (Refer to "HPCU ")

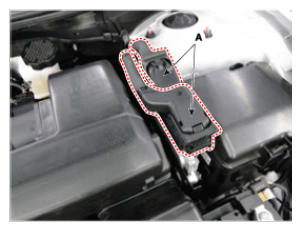

Disconnect the TCM connector (A).

Courtesy of HYUNDAI MOTOR AMERICA

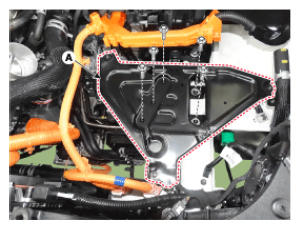

Remove the Hybrid Power Control Unit (HPCU) tray(A).
Tightening torque:

8.8 ~ 13.7 N.m (0.9 ~ 1.4 kgf.m, 6.5 ~ 10.1 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

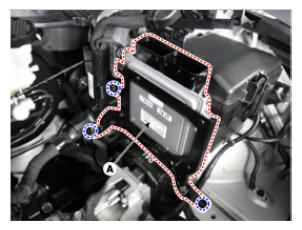

Remove the TCM(A) after removing the bolt and nut.
TCM installation bolt/nut:

9.8 ~ 11.8 N.m (1.0 ~ 1.2 kgf.m, 7.2 ~ 8.7 lb-ft)
