Transaxle Oil Temperature Sensor: Specifications

• Type: Negative Thermal Coefficient Type

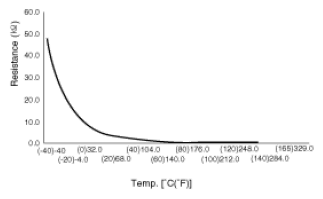

Temp.[(°C)°F]	Resistance (kΩ)
(-40)-40	48.1
(-20)-4.0	15.6
(0)32.0	5.88
(20)68.0	2.51
(40)104.0	1.19
(60)140.0	0.61
(80)176.0	0.32
(100)212.0	0.18
(120)248.0	0.11
(140)284.0	0.07
(165)329.0	0.04
