Components Location (2)

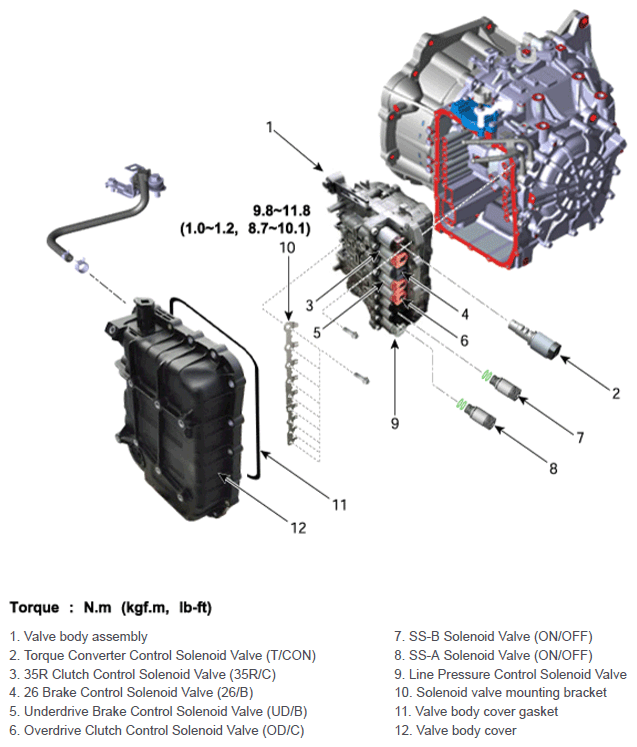

Fig 1: Automatic Transaxle Control System Components With Torque Specification (2)
G12611948Courtesy of HYUNDAI MOTOR AMERICA
