Components Location

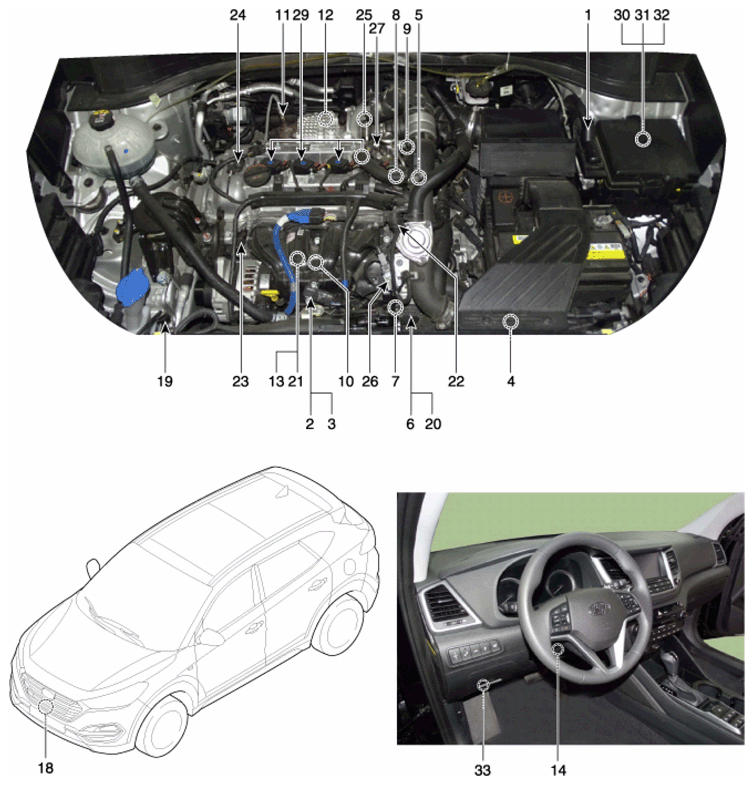

G12608991Courtesy of HYUNDAI MOTOR AMERICA

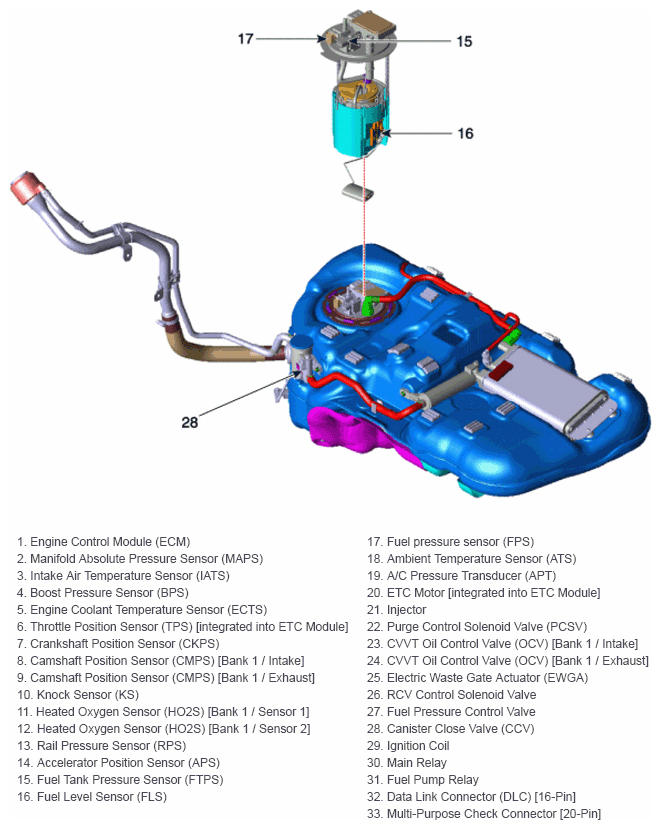

G12608992Courtesy of HYUNDAI MOTOR AMERICA

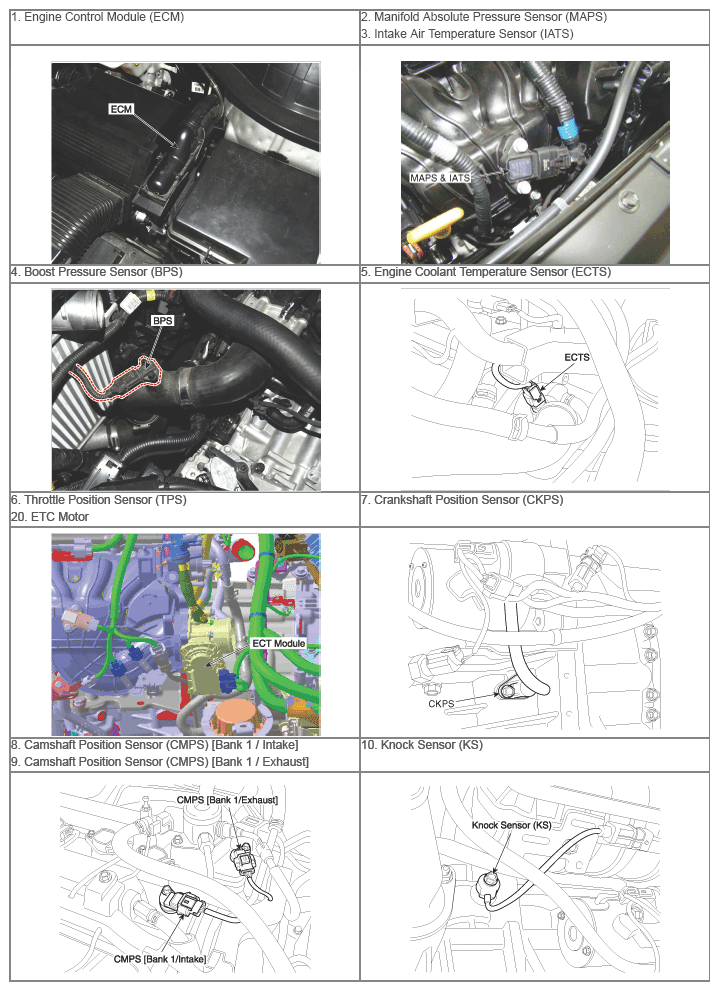

G12608993Courtesy of HYUNDAI MOTOR AMERICA

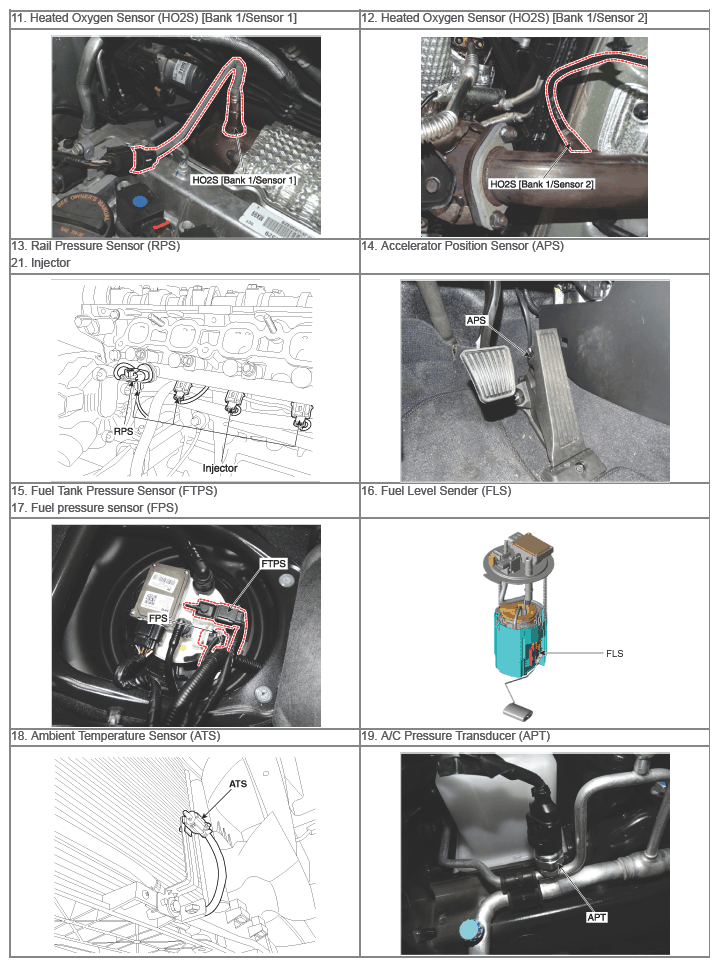

G12608994Courtesy of HYUNDAI MOTOR AMERICA

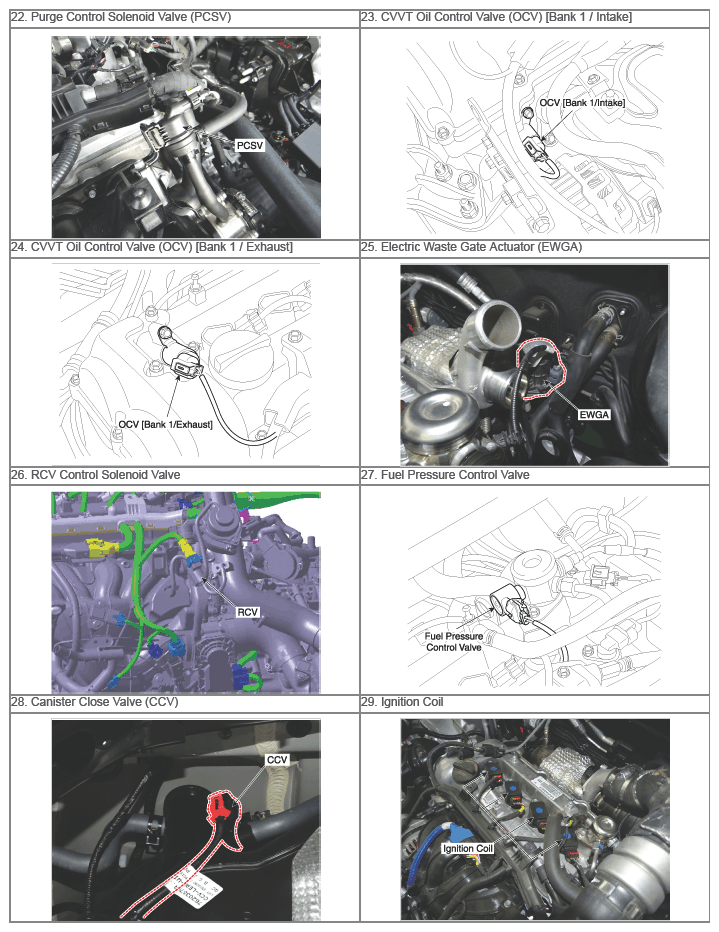

G12608995Courtesy of HYUNDAI MOTOR AMERICA

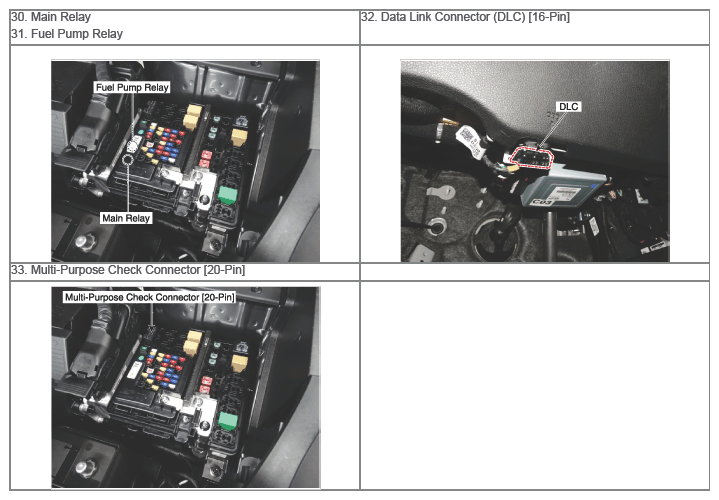

G12608996Courtesy of HYUNDAI MOTOR AMERICA
