Repair Procedures: Removal
NOTE:
- When replacing the ECM, the vehicle equipped with immobilizer must be performed the procedure as below.
[In the case of installing used ECM]
- Perform
"Neutral mode" procedure with GDS. Refer to NEUTRALIZING OF ECM
(Refer to Body Electrical System - "IMMOBILIZER SYSTEM ")
- Insert the key and turn it to the IGN ON and OFF position. Then the ECM key register process is completed automatically.
[In the case of installing new ECM]
- Insert the key and turn it to the IGN ON and OFF position.
Then the ECM key register process is completed automatically.
- Turn ignition switch OFF and disconnect the negative (-) battery cable.

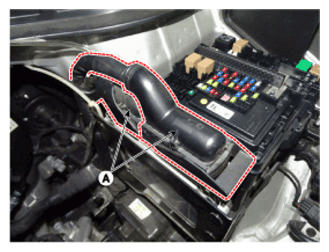

- Remove the air cleaner assembly.
(Refer to Engine Mechanical System - "AIR CLEANER ")
- Disconnect the ECM Connector (A).

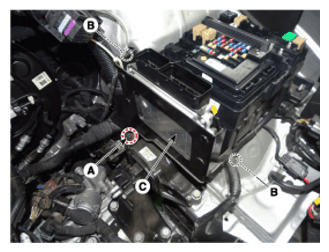

- Remove the mounting bolt (A) and nuts (B), and then remove the ECM (C).

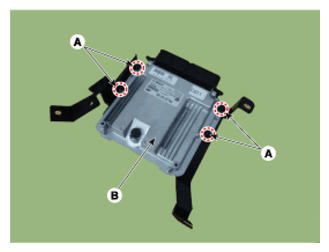

- Remove the ECM (B) after removing 4 nuts (A) from the bracket.
