Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad lower panel.

    (Refer to Body - "CRASH PAD LOWER PANEL ")

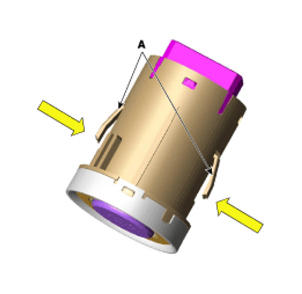

  3. Separate the SSB from the crash pad after pressing the retaining clips (A) on both sides of the SSB.
    G12610163Courtesy of HYUNDAI MOTOR AMERICA
  4. Remove the SSB (B) after disconnecting the connector (A).
    G12610164Courtesy of HYUNDAI MOTOR AMERICA
