Repair Procedures: Removal
- Turn the ignition switch OFF and disconnect the battery negative (-) cable.
- Lift the vehicle.

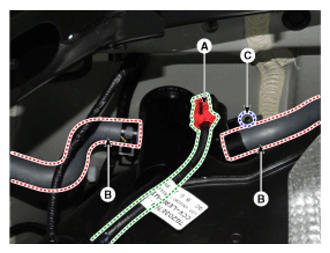

- Disconnect the canister close valve connector (A).
- Disconnect the ventilation hose (B) connected to the fuel tank air filter and canister close valve.
- Remove the fuel tank air filter after removing the installation nut (C).

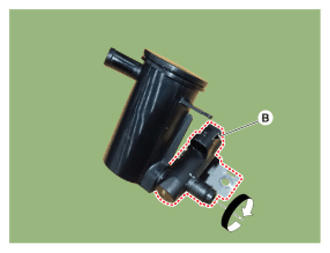

- Release the lever (A), and then rotate the canister close valve (B) in the direction of an arrow.
- Remove the canister close valve from the fuel tank air filter.
