Repair Procedures: Removal

Turn the ignition switch OFF and disconnect the battery negative (-) cable.
Remove the air cleaner assembly.
(Refer to Engine Mechanical System - "AIR CLEANER ")

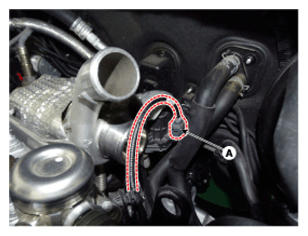

Disconnect the EWGA connector (A).

Courtesy of HYUNDAI MOTOR AMERICA
Remove the exhaust manifold heat protector.
(Refer to Engine Mechanical System - "EXHAUST MANIFOLD ")
Remove the shaft link assembly (B) after removing the C-ring (A).

Courtesy of HYUNDAI MOTOR AMERICA
Remove the turbo charger water pipe installation bolt (A).

Courtesy of HYUNDAI MOTOR AMERICA

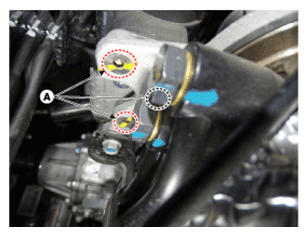

Remove the EWGA after removing the bolts (A).

Courtesy of HYUNDAI MOTOR AMERICA

CAUTION: When carrying the turbo charger, do not hold the rod of the turbo charge to prevent bending the rod.
