Repair Procedures: Installation

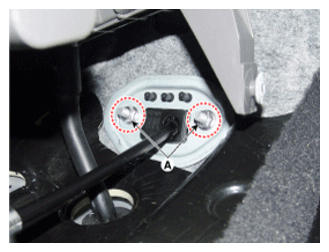

- Install the retainer and then tighten the nut (A).
Tightening torque:
8.8 ~ 13.7 N.m (0.9 ~ 1.4 kgf.m, 6.5 ~ 10.1 lb-ft)

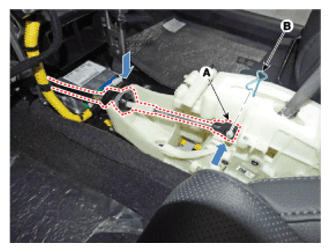

- Install the shift cable (A) and then fix the snap pin (B).NOTE:
- Install the cable after placing the shift lever and the manual control lever in the N position.

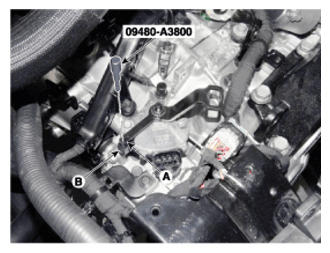

- Align the hole (A) in the manual control lever with the "N" position hole (B) of the inhibitor switch and then insert the inhibitor switch guide pin (SST No: 09480-A3800).

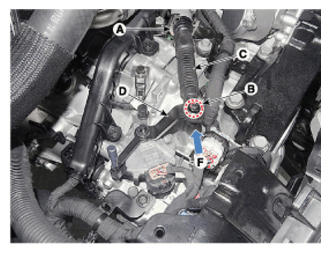

- Connect the shift cable (C) into cable bracket (A).
- Lightly tighten the nut (B) after connected the shift cable (C) in the manual control lever (D).
- Push shift cable (C) lightly to "F" direction shown to eliminate free play of shift cable.
- Tighten the nut (B) to the specified torque.
Tightening torque:
9.8 ~ 14.7 N.m (1.0 ~ 1.5 kgf.m, 7.2 ~ 10.8 lb-ft)
- Install the battery and tray.
(Refer to Engine Electrical System - "BATTERY ")
- Install the TCM.
(Refer to Dual Clutch Transmission Control System - "DCT Control Module (TCM) ")
- Install the air cleaner assembly and air duct.
(Refer to Engine Mechanical System - "AIR CLEANER ")
CAUTION: Check that operating surely at each range of the inhibitor switch corresponding to each position of shift lever.
