Repair Procedures: Disassembly

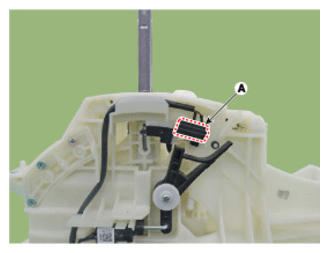

- Remove the plastic bracket (A) and then disconnect the "P" position switch.

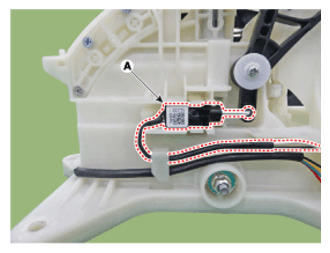

- Disconnect the shift lock solenoid (A).

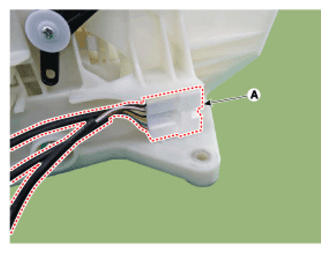

- Disconnect the main connector (A) from the shift lever.
- Remove the mounting bracket (A) of terminals from the main connector.

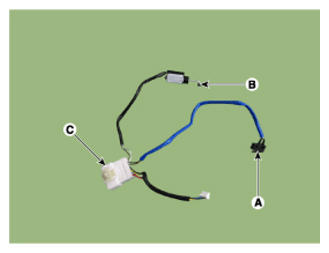

- Remove each terminals of the P position switch (A), shift lock solenoid (B) from the main connector (C).CAUTION: Record the location of the wiring colors before disconnecting the terminals.
