Circuit Diagram: (M/T)

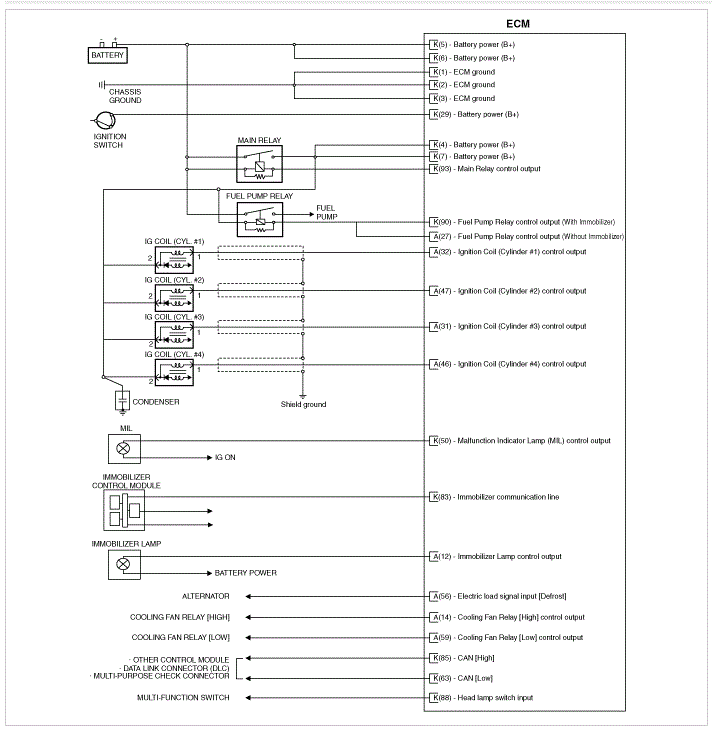

G12598471Courtesy of HYUNDAI MOTOR AMERICA

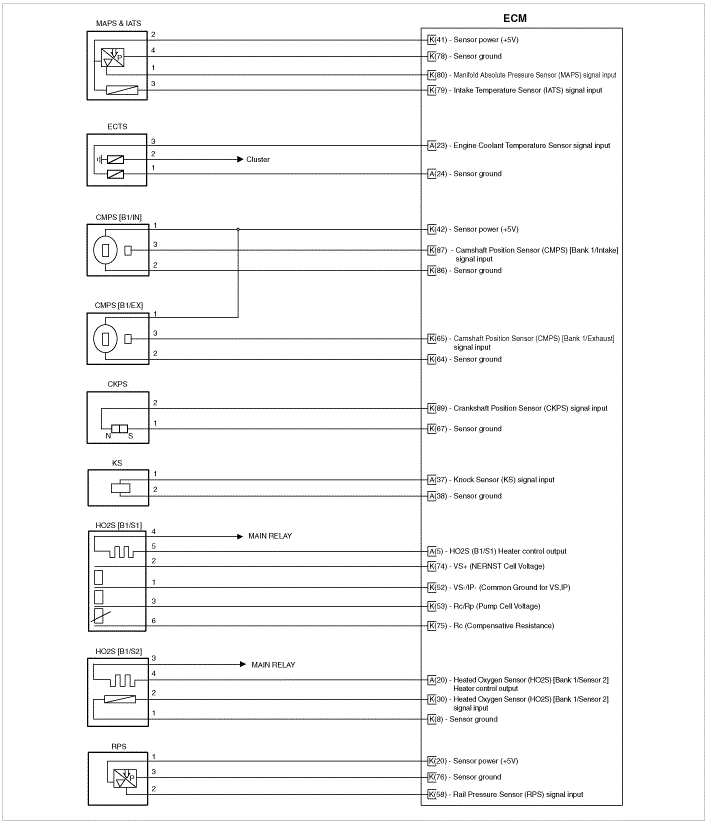

G12598472Courtesy of HYUNDAI MOTOR AMERICA

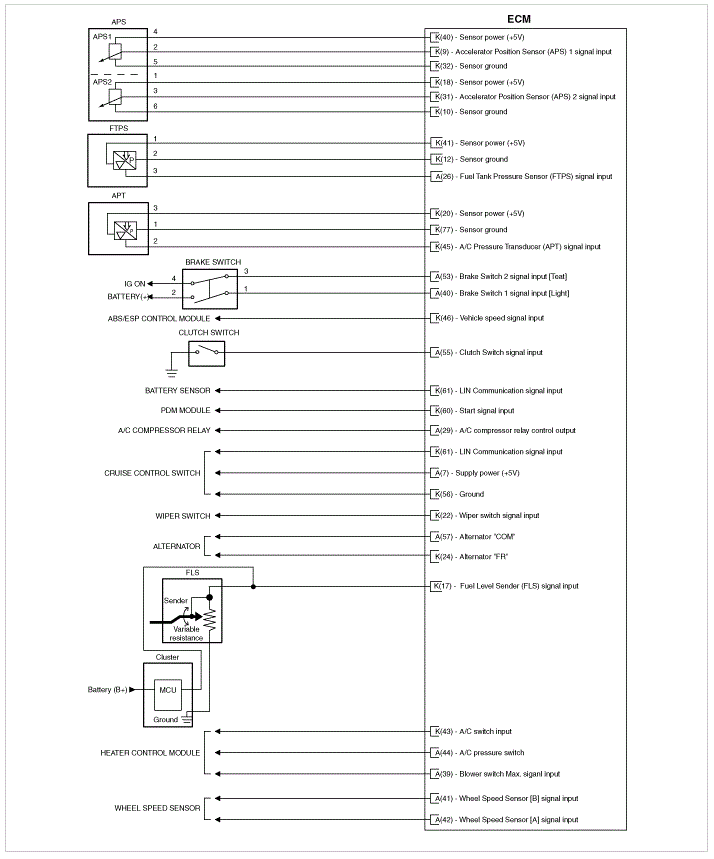

G12598473Courtesy of HYUNDAI MOTOR AMERICA

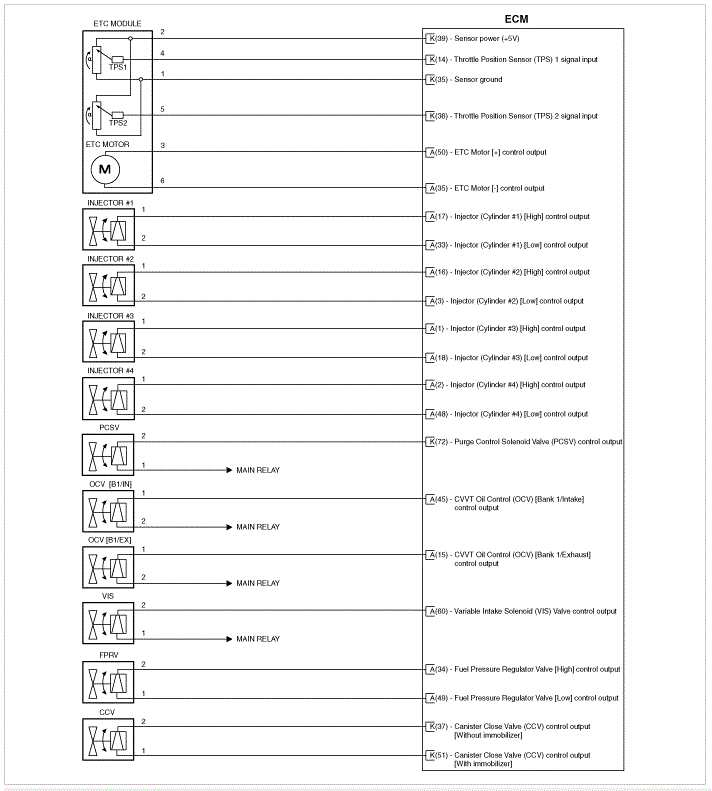

G12598474Courtesy of HYUNDAI MOTOR AMERICA
