Repair Procedures: Removal: Notes

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Disconnect the connector (A), and then remove the sensor (B).
NOTE:

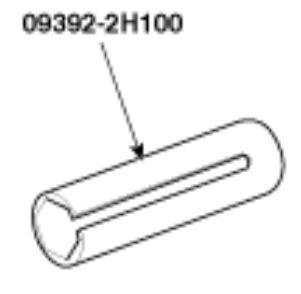

  • Note that the SST (Part No.: 09392-2H100) is useful when removing the heated oxygen sensor.
G12598528Courtesy of HYUNDAI MOTOR AMERICA
