Repair Procedures: Removal
- Turn the Ignition Switch OFF and disconnect the battery negative (-) cable.
- Remove the Intake Manifold.
(Refer to Engine Mechanical System - "Intake And Exhaust System - INTAKE MANIFOLD ")

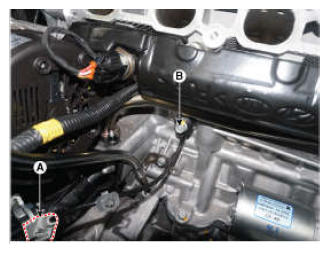

- Disconnect the Injector Connector (A).
- Remove the Installation Bolt (B), and then remove the sensor from the cylinder block.
