Repair Procedures: Removal
- Turn the ignition switch OFF and disconnect the battery negative (-) cable.
- Remove the ETC module.
(Refer to Engine Control System - "ETC (ELECTRONIC THROTTLE CONTROL) SYSTEM ")

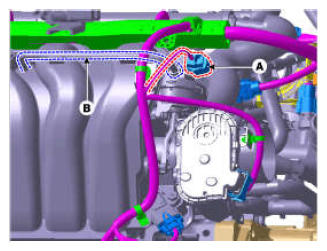

- Disconnect the vacuum hoses (B) from the valve.
- Remove the installation bolts, and then remove the valve from the surge tank.
