TCM Learning Procedure

  1. Automatic Transaxle Fluid (ATF) temperature: 40 - 100 °C (104 - 212 °F)
  2. Static learning

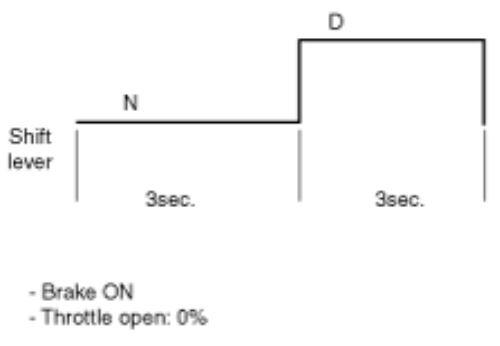

    Repeat the below shift pattern four times or more with stepping on the brake.

G12598963Courtesy of HYUNDAI MOTOR AMERICA
