Repair Procedures: Installation
- To install, reverse the removal procedure.

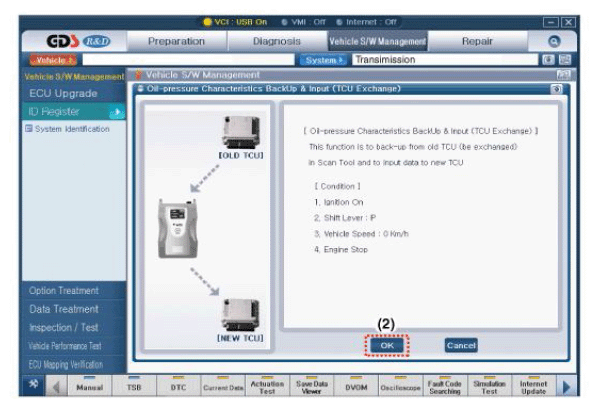

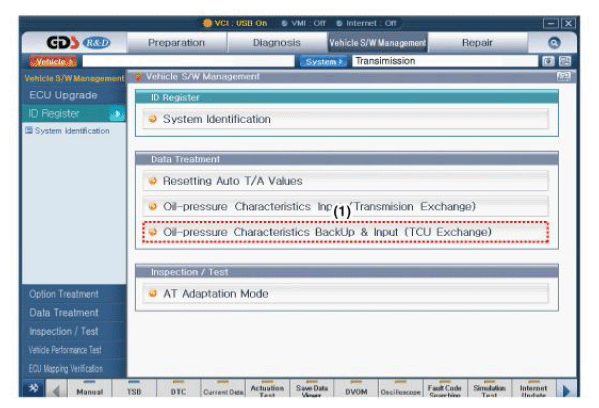

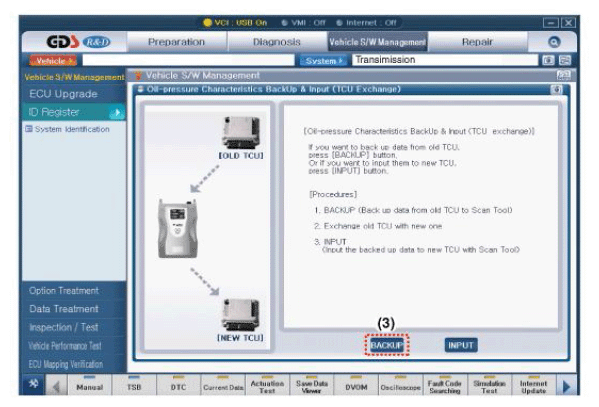

- Oil-pressure characteristics input (TCM exchange)
- Perform the procedures related in the ECM after replacing the TCM.
(Refer to Engine Control / Fuel System - "ENGINE CONTROL MODULE ")
- Perform TCM Learning after replacing the transaxle to prevent slow transaxle response, jerky acceleration and jerky startup.
(Refer to Automatic Transaxle Control System - "TRANSAXLE CONTROL MODULE (TCM) LEARNING ")
