Repair Procedures: Removal

  1. Oil-pressure characteristics backup (TCM exchange)

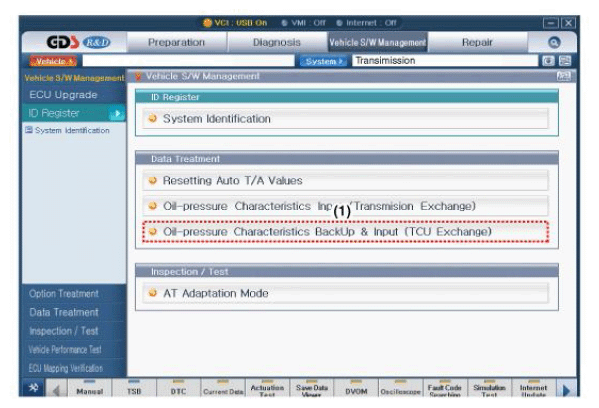

    G12598968Courtesy of HYUNDAI MOTOR AMERICA

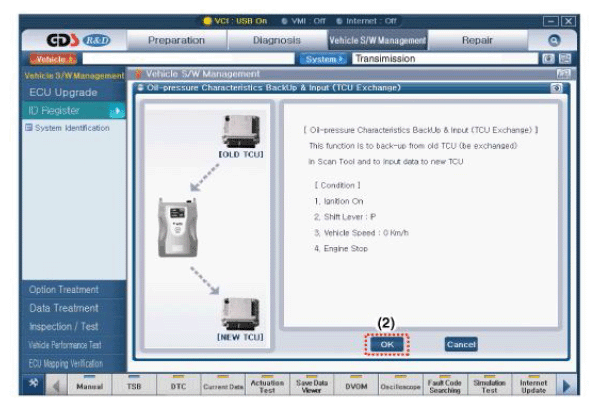

    G12598969Courtesy of HYUNDAI MOTOR AMERICA

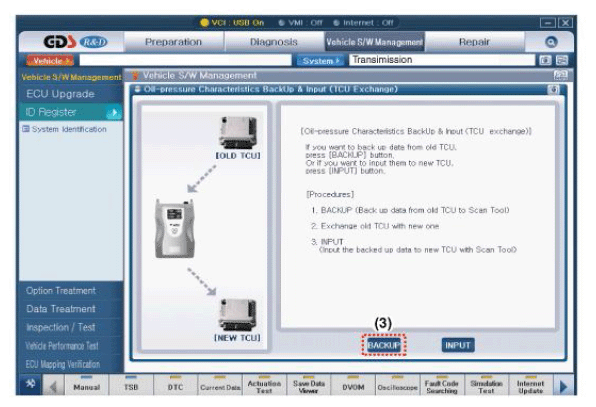

    G12598970Courtesy of HYUNDAI MOTOR AMERICA
  2. Turn ignition switch OFF.
  3. Disconnect the negative (-) battery cable.
  4. Disconnect the TCM connector (A).
    G12598971Courtesy of HYUNDAI MOTOR AMERICA
  5. Remove the battery.

    (Refer to Engine Electrical System - "BATTERY ")

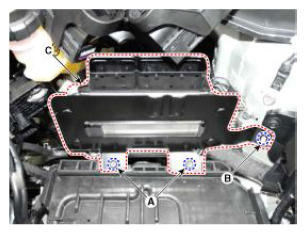

  6. Remove the bolts (A) and nut (B).
  7. Remove the TCM (C).
G12598972Courtesy of HYUNDAI MOTOR AMERICA
