Components Location

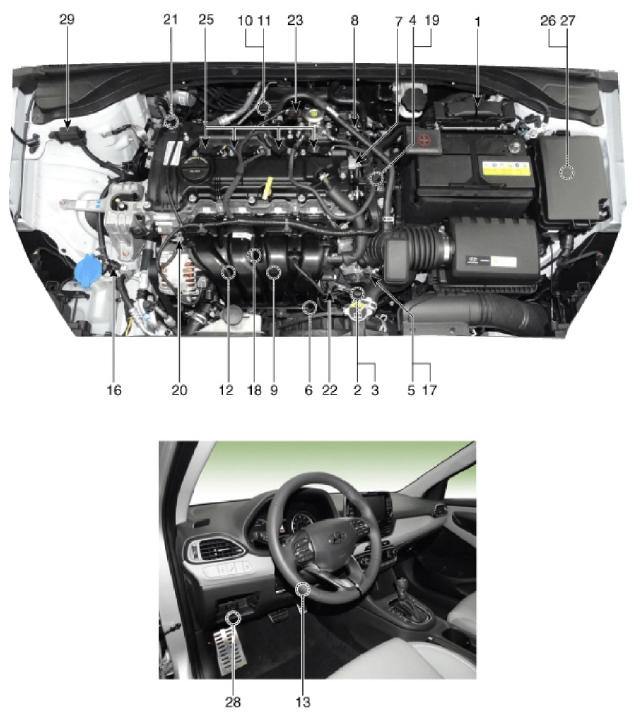

G13036854Courtesy of HYUNDAI MOTOR AMERICA

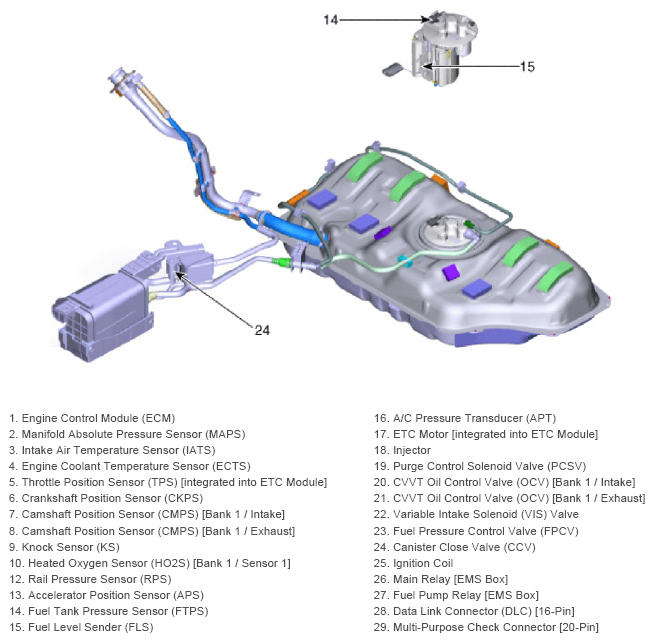

G13036855Courtesy of HYUNDAI MOTOR AMERICA

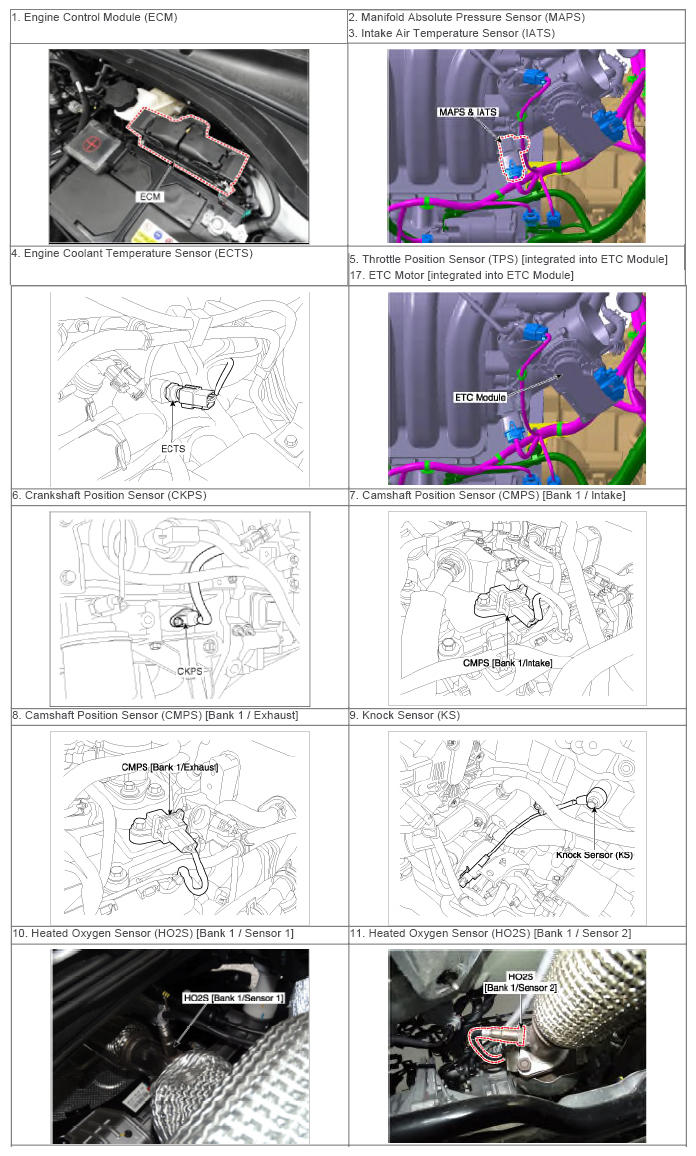

G13036856Courtesy of HYUNDAI MOTOR AMERICA

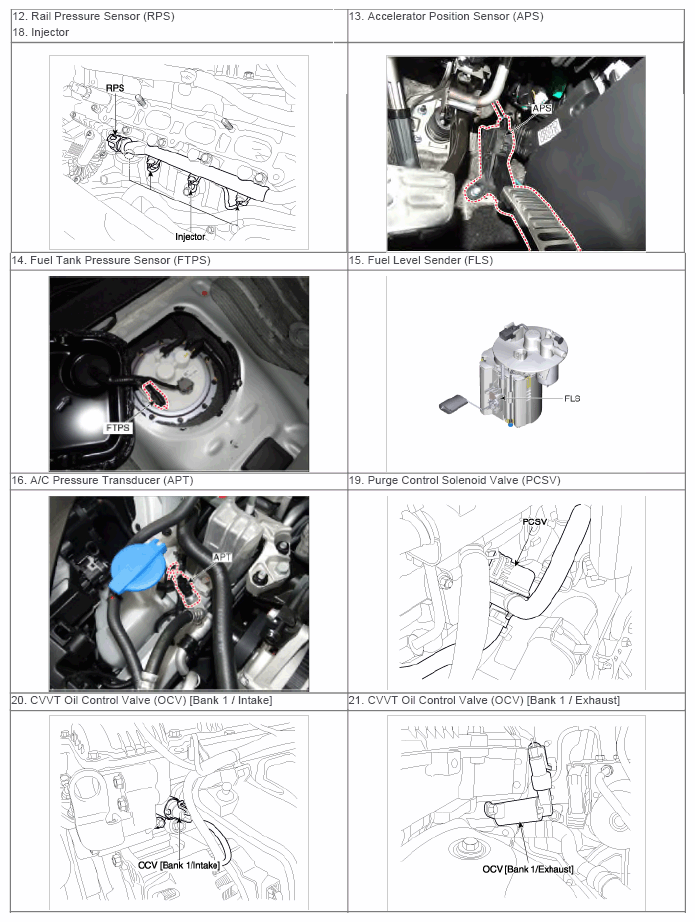

G13036857Courtesy of HYUNDAI MOTOR AMERICA

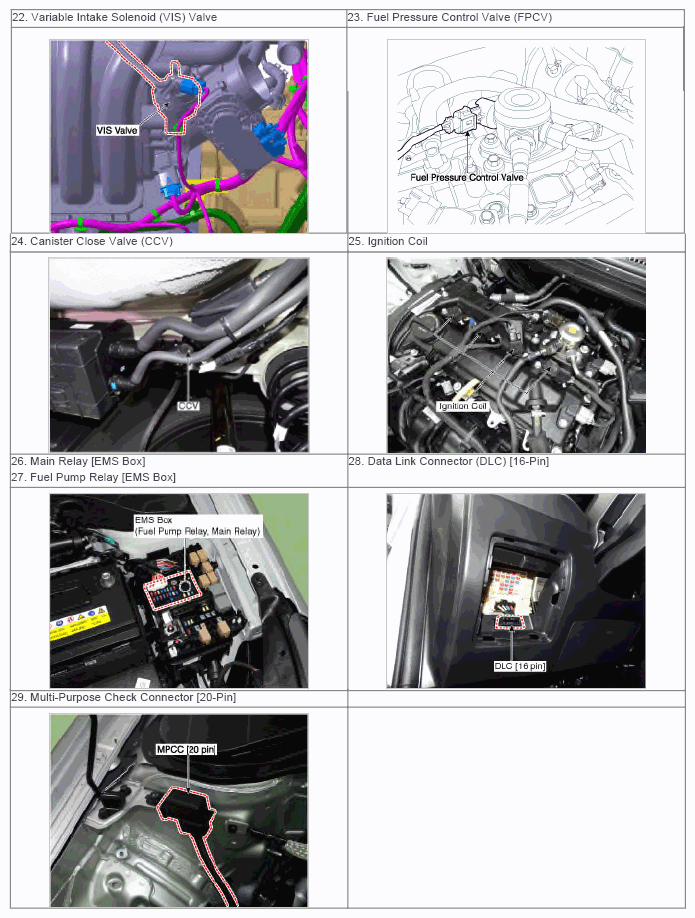

G13036858Courtesy of HYUNDAI MOTOR AMERICA
