Accelerator Position Sensor (APS): Specifications: Specification

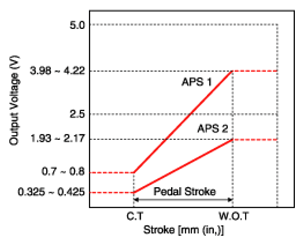

ACCELERATOR POSITION SENSOR (APS) SPECIFICATION
| Accelerator Position |
Output Voltage (V) |
| APS1 |
APS2 |
| C.T |
0.7 ~ 0.8 |
0.325 ~ 0.425 |
| W.O.T |
3.98 ~ 4.22 |
1.93 ~ 2.17 |
 Courtesy of HYUNDAI MOTOR AMERICA
|
