Components Location

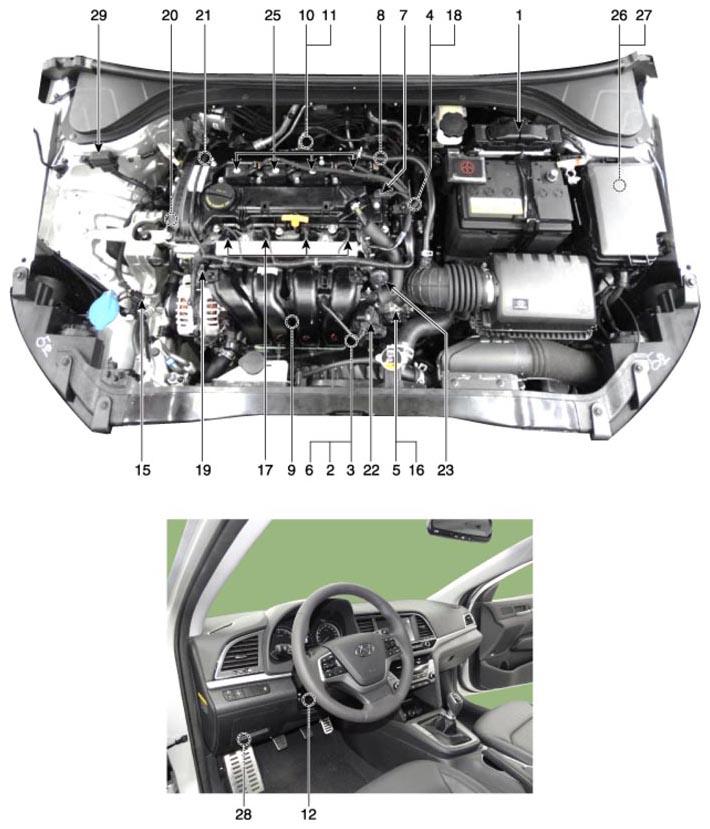

G12980855Courtesy of HYUNDAI MOTOR AMERICA

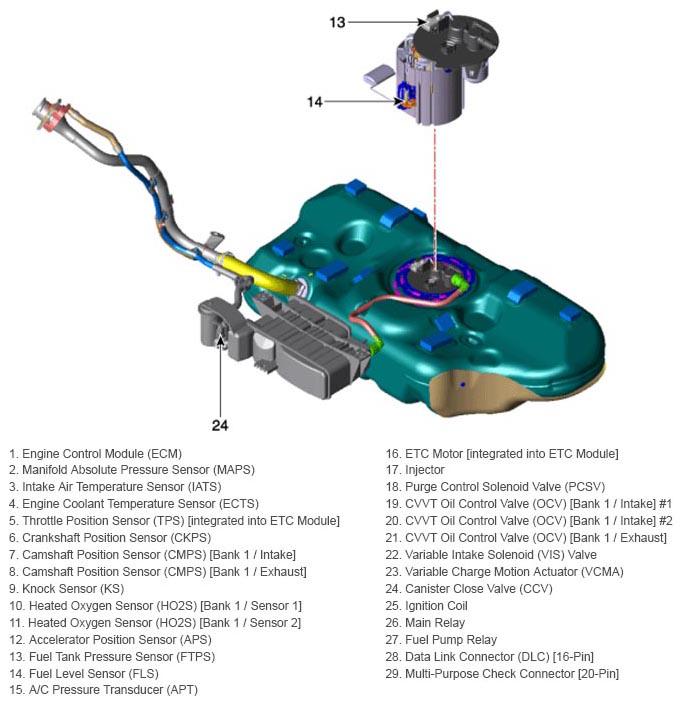

G12980856Courtesy of HYUNDAI MOTOR AMERICA

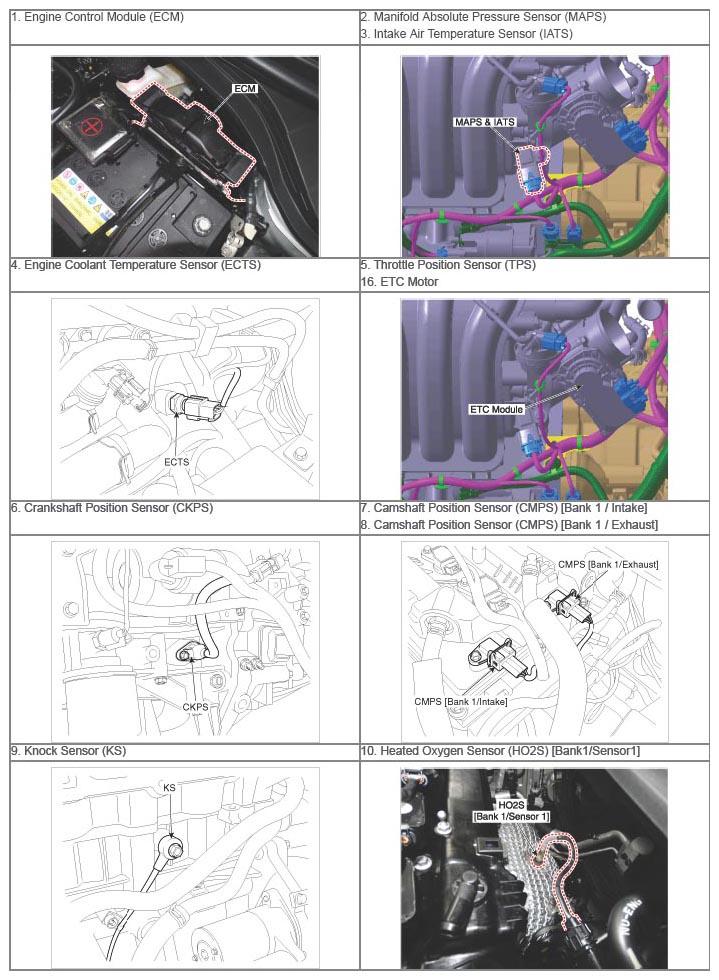

G12980857Courtesy of HYUNDAI MOTOR AMERICA

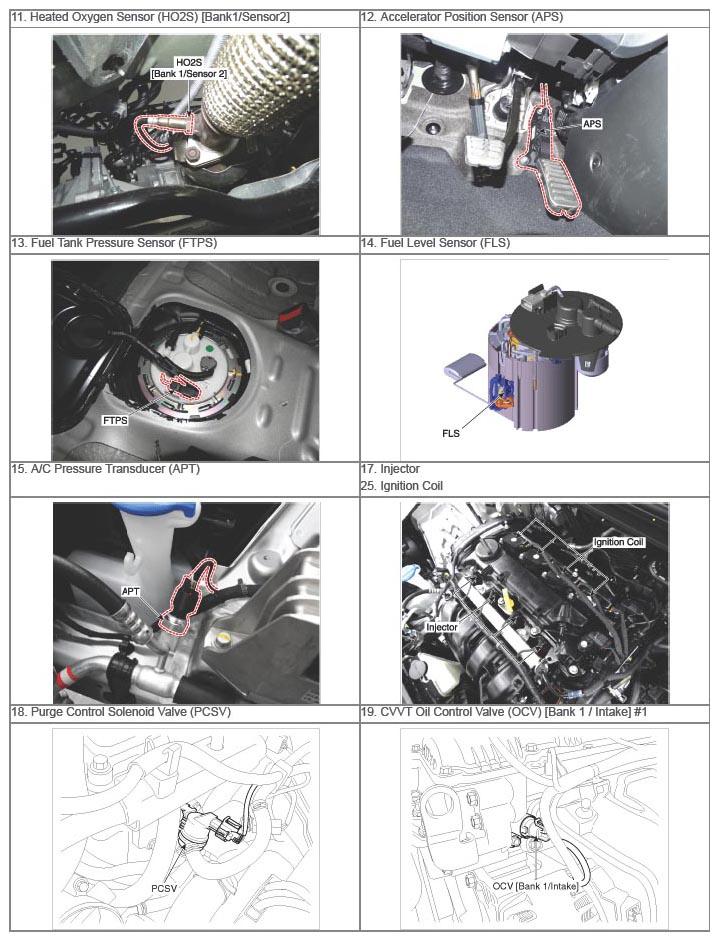

G12980858Courtesy of HYUNDAI MOTOR AMERICA

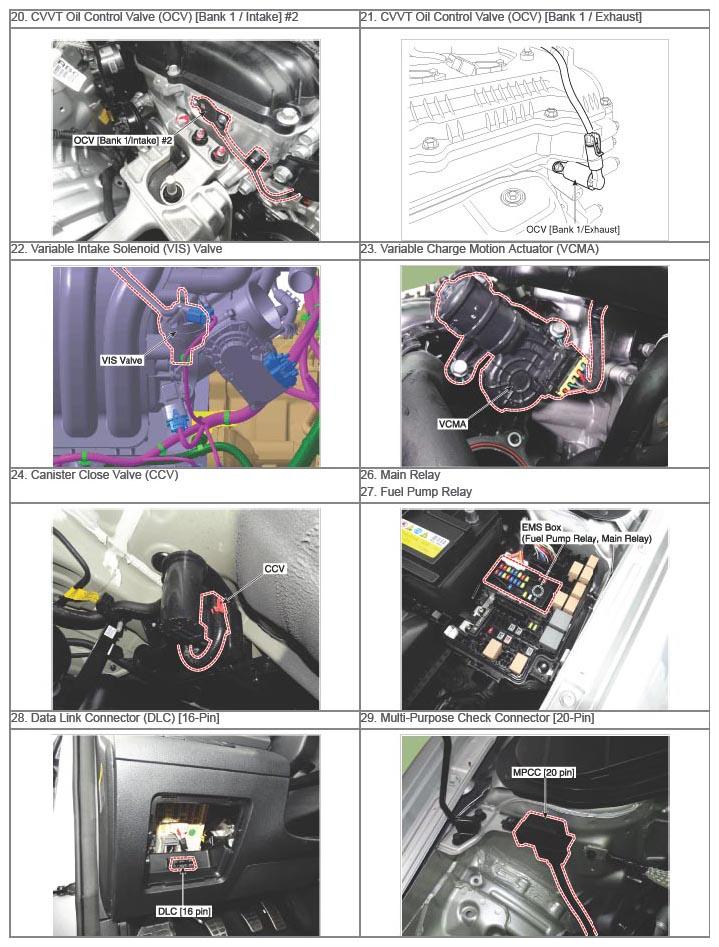

G12980859Courtesy of HYUNDAI MOTOR AMERICA
