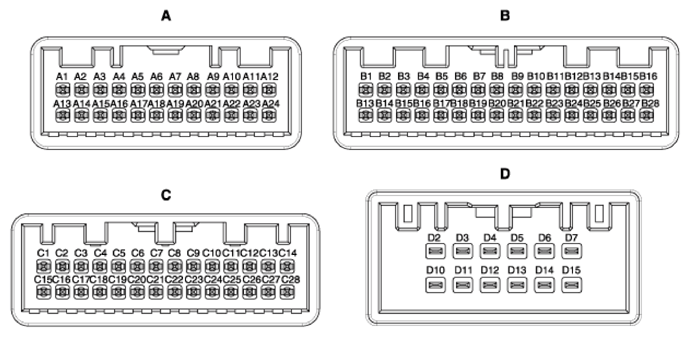

Body Control Module
 Courtesy of HYUNDAI MOTOR AMERICA
|
| Pin |
Function |
| D3 |
Ignition 2_Heated handle power |
| D4 |
Ignition 2_Heated handle power_2 |
| D5 |
Heated handle |
| C22 |
NTC (-) |
| C9 |
NTC (+) |
| C4 |
Heated handle switch |
