Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Turn the ignition switch OFF and disconnect the negative (-) battery terminal.
  2. Disconnect the accelerator position sensor connector (A).
  3. Remove the upper mounting cap (B), and then remove the mounting nut (C).
  4. Remove the lower mounting cap (D), and then remove the mounting nut (E).

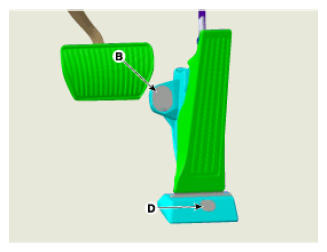

    G12991970Courtesy of HYUNDAI MOTOR AMERICA

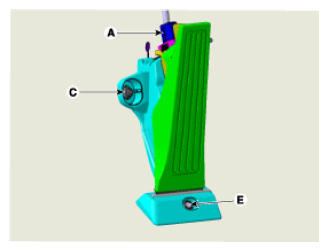

    G12991971Courtesy of HYUNDAI MOTOR AMERICA
