Repair Procedures: Installation

WARNING: This page is about a different variant/trim than selected.

Dowel pin of crankshaft should be positioned at 3° in relation to vertical center line.

Courtesy of HYUNDAI MOTOR AMERICA

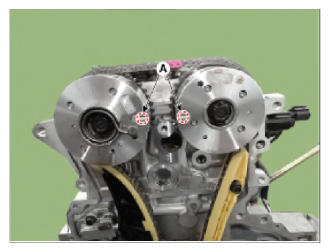

Align the TDC marks (A) of the CVVT sprockets with the upper surface of the cylinder head to make No. 1 cylinder be positioned at TDC.

Courtesy of HYUNDAI MOTOR AMERICA

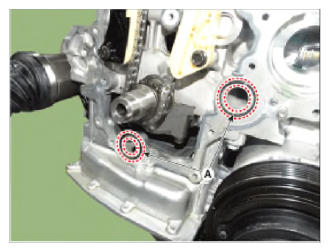

Install the new O-rings (A).

Courtesy of HYUNDAI MOTOR AMERICA
Install the timing chain guide (A) and the timing chain (B).
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
NOTE:
- When installing a timing chain, align the timing marks on the sprockets with paint marks of the chain.
- Order: Crankshaft sprocket → Timing chain guide → Intake CVVT sprocket → Exhaust CVVT sprocket.

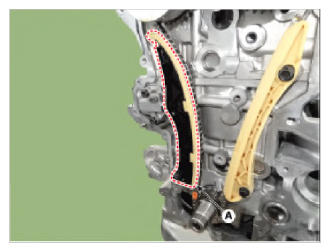

Install the chain tensioner arm (A).
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
Install the hydraulic tensioner (A) and remove the pin (B).
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
NOTE:
- Recheck the top dead center (TDC) marks on the crankshaft and camshaft.
Install the timing chain cover & oil pump assembly.
(Refer to Timing System - "TIMING CHAIN COVER & OIL PUMP ASSEMBLY ")
