Components And Components Location: Components

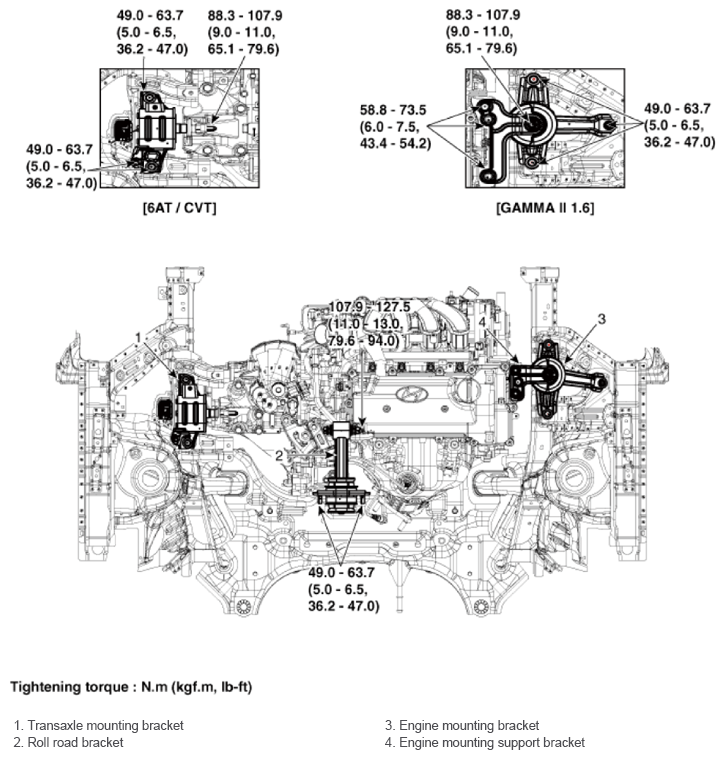

Fig 1: Engine Mounting Components Location With Torque Specifications
G14076238Courtesy of HYUNDAI MOTOR AMERICA
