Automatic Transaxle Control System - 2.0L
>>
Shift Cable
>>
Components & Component Location
>>
Components Location
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Components Location

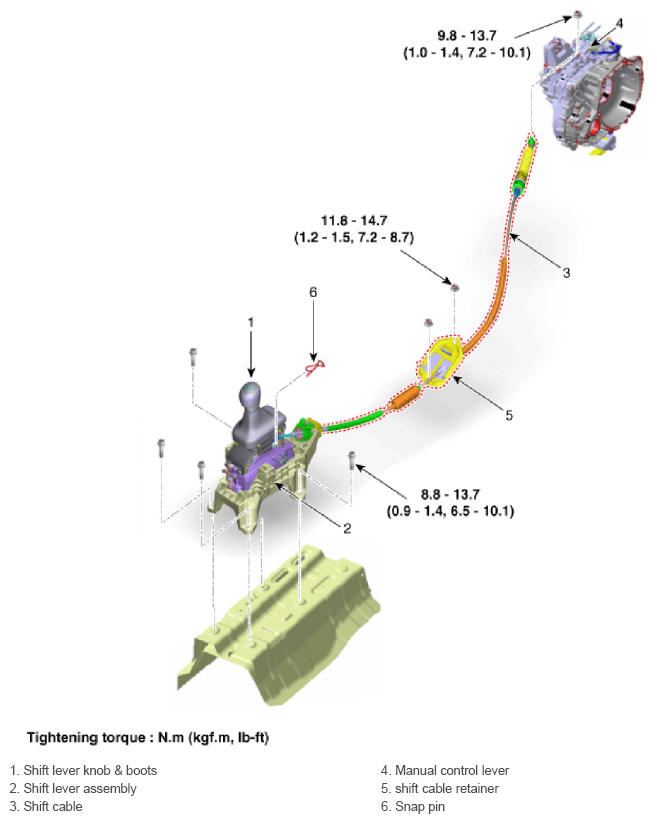

Fig 1: Shift Cable Components Location With Torque Specification
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
