Components And Components Location

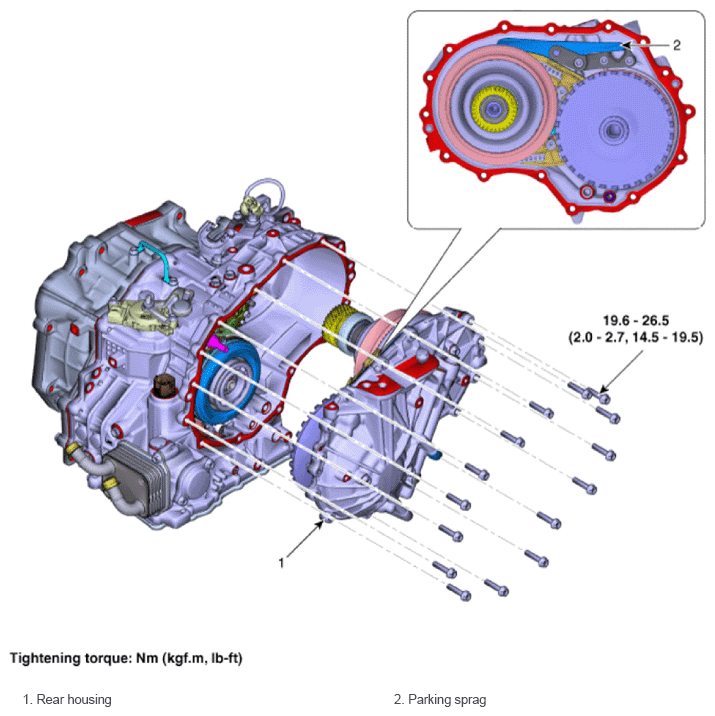

Fig 1: Parking Sprag Components Location With Torque Specification
G14084654Courtesy of HYUNDAI MOTOR AMERICA
