Repair Procedures: Removal
- Turn OFF ignition switch and then disconnect the battery negative (-) cable.
- Remove the shift lever knob & boots (A).
- Remove the floor console assembly.
(Refer to Body - "FLOOR CONSOLE ")

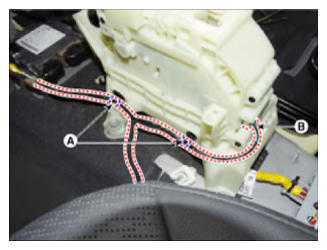

- Separate the fixing clip of wiring (A).
- Disconnect the connector (B).
- Separate the shift cable.

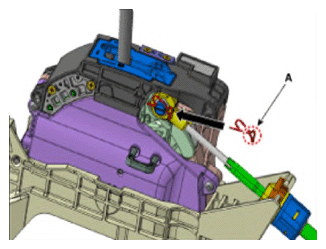

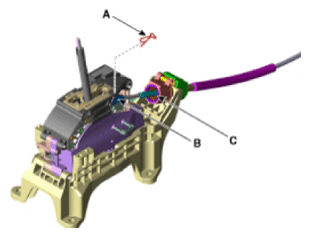

- Remove the snap pin (A).
- Separate the shift cable eye end (B).

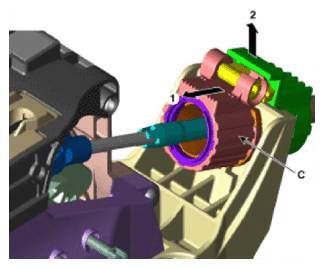

- Separate the shift cable socket (C) from the shift lever.

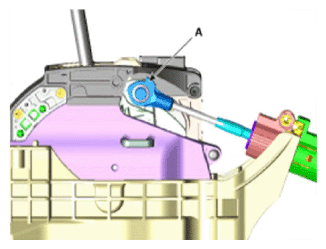

CAUTION:- Lug (A) must assemble upward.
- Bending area (A) must assemble the front.

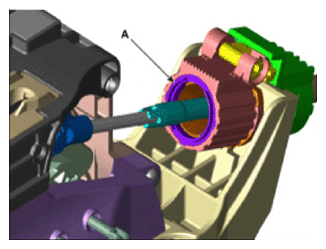

- Push in the cable socket at bracket of AT lever and must confirm that assembly sound and portion (A) of sock protrude from cap of socket.
- Portion (A) located inside the cap before assembled.
- Portion (A) must protrude after socket assembled.

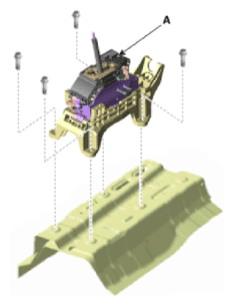

- Remove the bolts and then shift lever assembly (A).
Tightening torque: 8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 lb-ft)
