Repair Procedures: Removal
WARNING: This page is about a different variant/trim than selected.
WARNING:
- In case of removing the high pressure fuel pump, high pressure fuel pipe, delivery pipe, and injector, there may be injury caused by leakage of the high pressure fuel. So don't do any repair work right after engine stops.
- Turn the ignition switch OFF and disconnect the battery negative (-) cable.
- Release the residual pressure in fuel line.
(Refer to the Release Residual Pressure in Fuel Line )
CAUTION:- When removing the fuel pump fuse, a Diagnostic Trouble Code (DTC) may occur. Delete the code with the GDS after completion of "Release Residual Pressure in Fuel Line" work.
- Remove the intake manifold.
(Refer to Engine Mechanical System - "INTAKE MANIFOLD ")

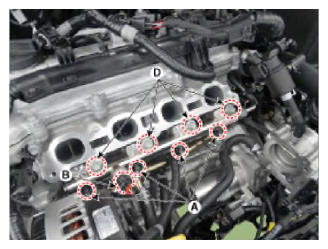

- Disconnect the injector connector (A).
- Disconnect the Rail pressure sensor connector (B).

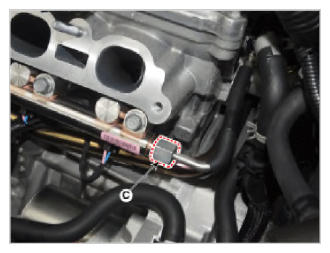

- Remove the high pressure fuel pipe (C).

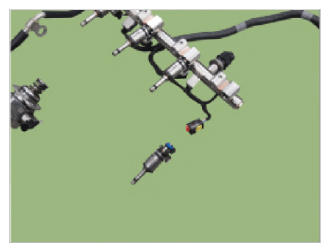

- Remove the installation bolt (D), and then remove the delivery pipe and injector assembly from the engine.
