Repair Procedures: Removal

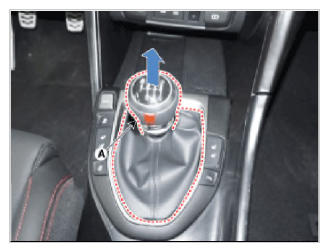

Remove the shift knob & boots (A).

Courtesy of HYUNDAI MOTOR AMERICA
Remove the floor console assembly.
(Refer to Body - "FLOOR CONSOLE ")

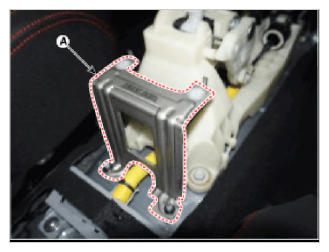

Remove the bracket (A).

Courtesy of HYUNDAI MOTOR AMERICA

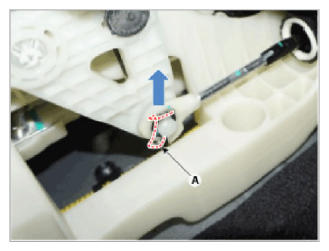

Remove the snap pin (A).

Courtesy of HYUNDAI MOTOR AMERICA

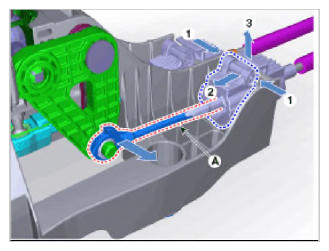

Separate the select cable (A).

Courtesy of HYUNDAI MOTOR AMERICA

Separate the shift cable.

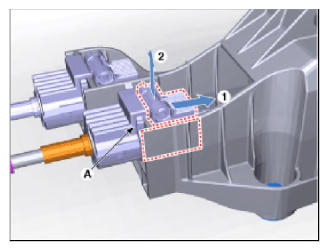

Remove the cable socket (A), after release the lock.

G13052751

Courtesy of HYUNDAI MOTOR AMERICA

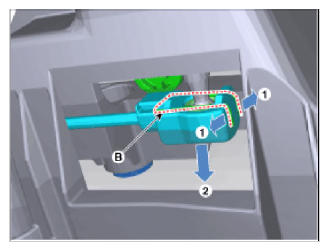

Remove the clip, in the shape of a "U" (B), from the cable end by spreading it towards both sides.

G13052752

Courtesy of HYUNDAI MOTOR AMERICA

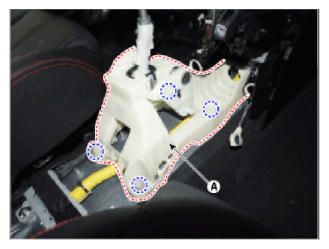

Loosen the bolts (4-ea) and then removing the shift lever assembly (A).
Tightening torque :

8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
