Transmitter Code Registration (Using GDS)

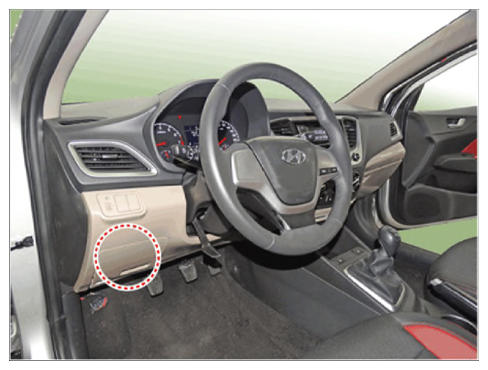

  1. Connect the DLC cable of GDS to the data link connector (16 pins) in driver side crash pad lower panel, turn the power on GDS.
    G14078674Courtesy of HYUNDAI MOTOR AMERICA
  2. Select the vehicle model and then do "CODE SAVING"

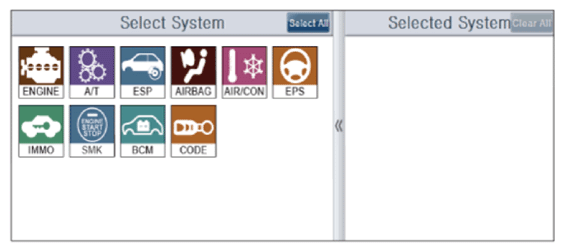

    G14078675Courtesy of HYUNDAI MOTOR AMERICA
  3. After selecting "CODE SAVING" menu, button "ENTER" key, then the screen will be as shown in illustration below.

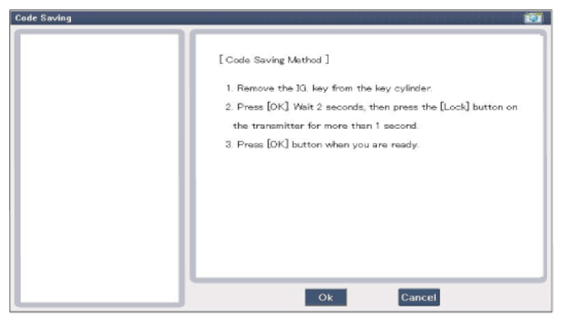

    G14078676Courtesy of HYUNDAI MOTOR AMERICA
  4. After removing the ignition key from key cylinder, push "ENTER" key to proceed to the next mode for code saving. Follow steps 1 to 4 and then code saving is completed.
    G14078677Courtesy of HYUNDAI MOTOR AMERICA

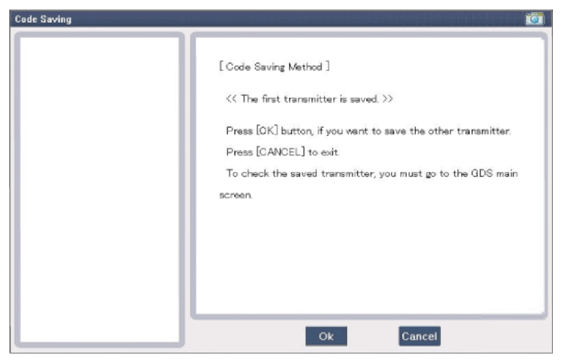

    G14078678Courtesy of HYUNDAI MOTOR AMERICA

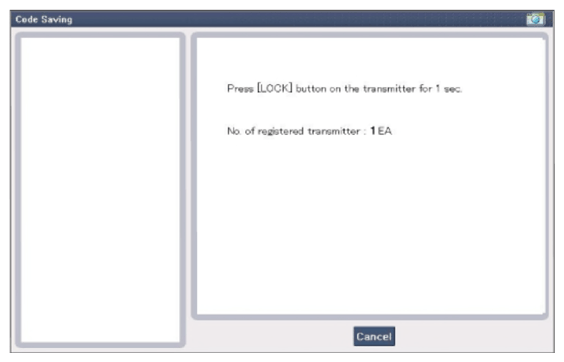

    G14078679Courtesy of HYUNDAI MOTOR AMERICA

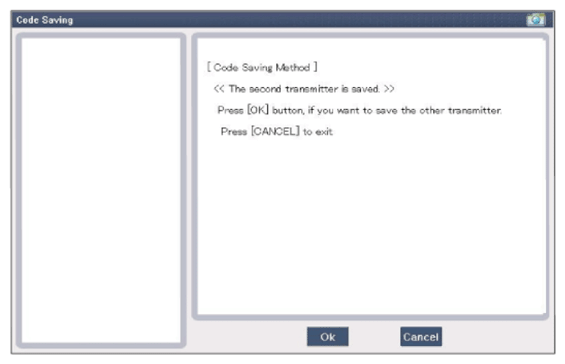

    G14078680Courtesy of HYUNDAI MOTOR AMERICA
    G14078681Courtesy of HYUNDAI MOTOR AMERICA
    G14078682Courtesy of HYUNDAI MOTOR AMERICA
