Repair Procedures: Removal
- Turn the ignition switch OFF and disconnect the battery negative (-) cable.
- Lift the vehicle.

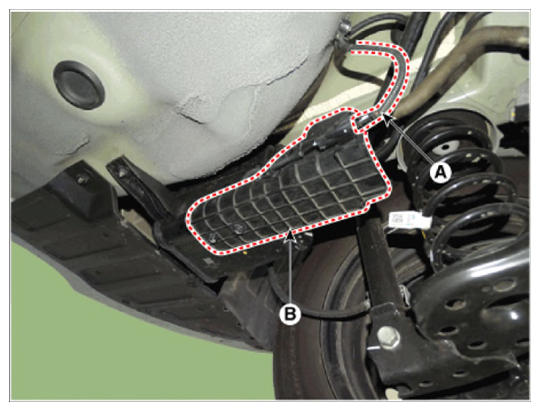

- Disconnect the canister close valve extension connector (A).
- Remove the canister protector (B).
 Courtesy of HYUNDAI MOTOR AMERICA
|

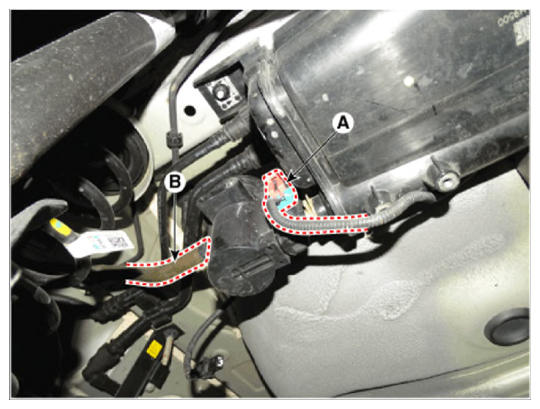

- Disconnect the canister close valve connector (A).
- Remove the ventilation hose (B).
 Courtesy of HYUNDAI MOTOR AMERICA
|
- Remove the air filter (A).
 Courtesy of HYUNDAI MOTOR AMERICA
|

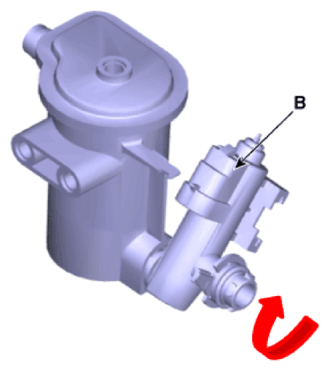

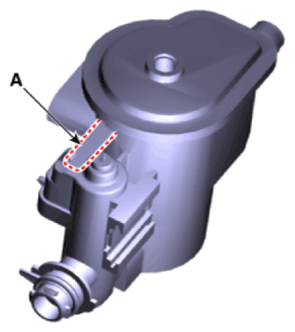

- Release the lever (A), and then separate the canister close valve (B) from the fuel tank air filter after rotating it in the direction of the arrow in the figure below.
