Description And Operation: Description

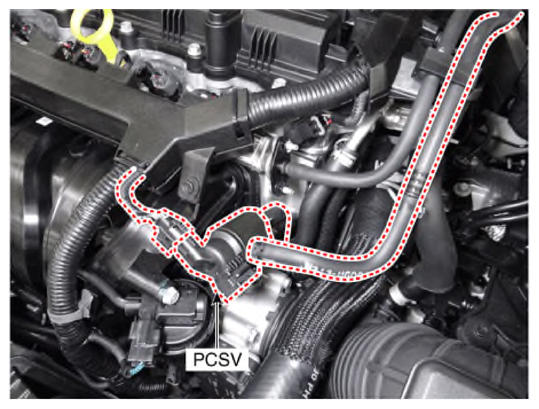

Purge Control Solenoid Valve (PCSV) is a solenoid valve and is installed on the surge tank and controls the passage between the canister and the intake manifold.

The evaporative gases gathered in the canister are delivered to the intake manifold when the PCSV is open by ECM control signal.

Courtesy of HYUNDAI MOTOR AMERICA
