Repair Procedures: Disassembly

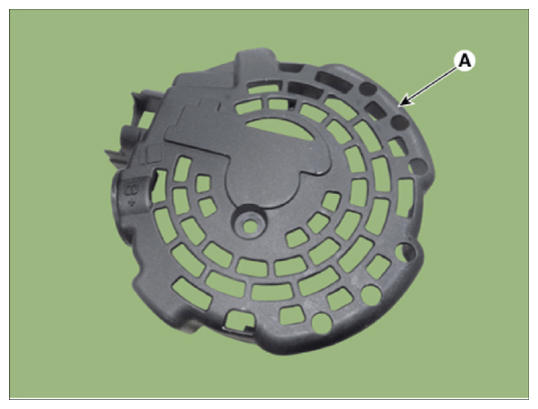

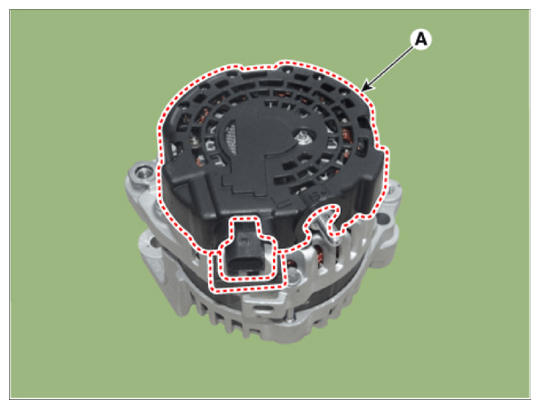

- Remove the rear cover (A).
 Courtesy of HYUNDAI MOTOR AMERICA
|
 Courtesy of HYUNDAI MOTOR AMERICA
|

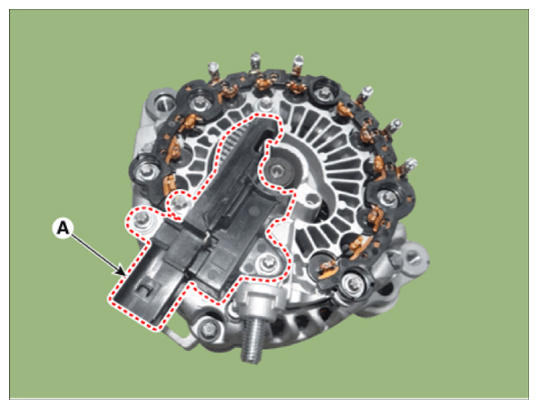

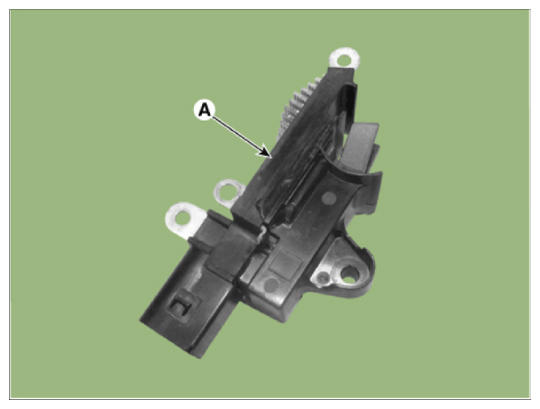

- Remove the mounting bolts (A) and the regulator assembly.
NOTE:
- When installing, replace with new OAP cap.
 Courtesy of HYUNDAI MOTOR AMERICA
|
 Courtesy of HYUNDAI MOTOR AMERICA
|

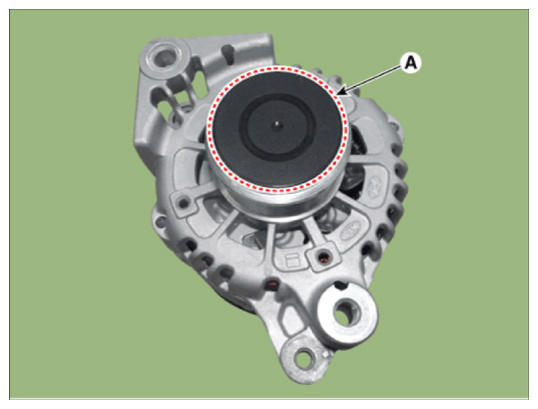

- Remove the OAP cap.
 Courtesy of HYUNDAI MOTOR AMERICA
|
NOTE:
- When installing, replace with new OAP cap.

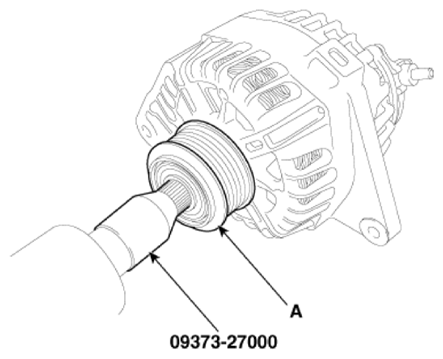

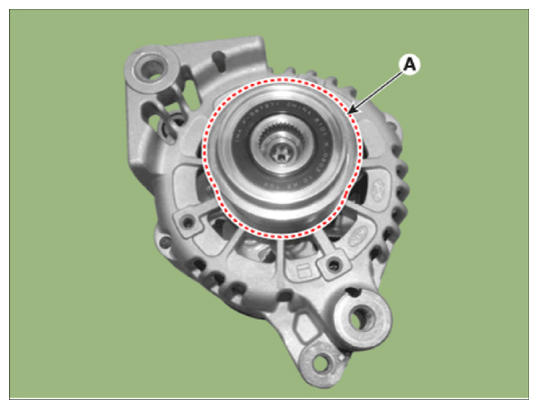

- Remove the OAP pulley (A) using the special tool (09373-27000).
 Courtesy of HYUNDAI MOTOR AMERICA
|
 Courtesy of HYUNDAI MOTOR AMERICA
|

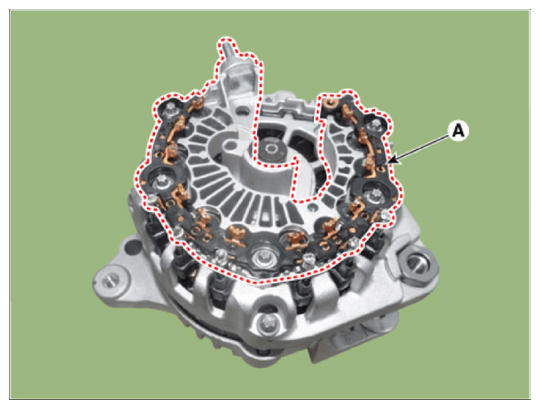

- Remove the rectifier assembly (A) after disconnecting the stator leads.
 Courtesy of HYUNDAI MOTOR AMERICA
|

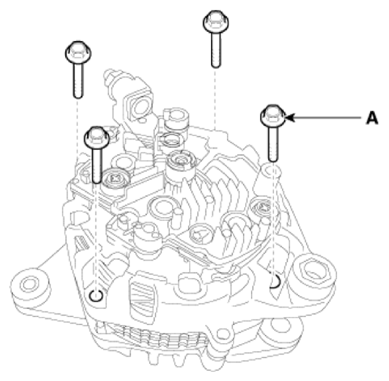

- Remove the 4 through bolts (A).
 Courtesy of HYUNDAI MOTOR AMERICA
|

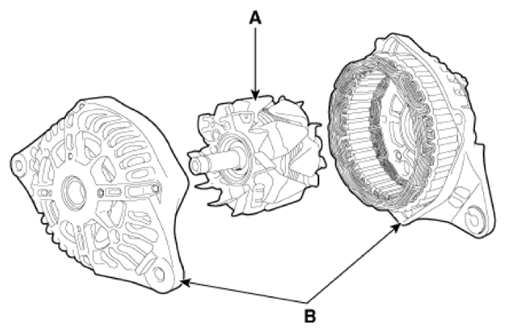

- Disconnect the rotor (A) and bracket (B).
 Courtesy of HYUNDAI MOTOR AMERICA
|
- Install in the reverse order of removal.
