Connector Assembly Status Test

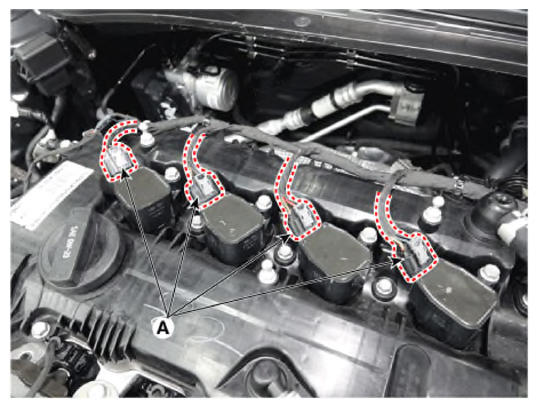

  1. Remove the ignition coil connectors (A) and reinstall it.
    G14607473Courtesy of HYUNDAI MOTOR AMERICA

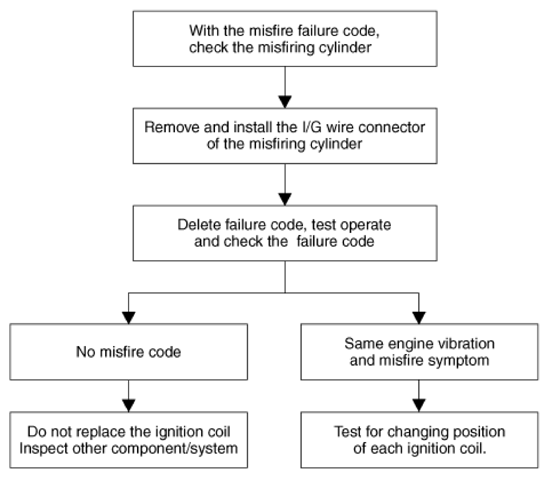

    G14607474Courtesy of HYUNDAI MOTOR AMERICA
