Repair Procedures: Removal

WARNING:
  • DON'T remove the camshaft position sensor while the engine is running or right after engine is turned off. The part and engine oil is hot and can cause burns.

[Bank 1/Intake]

  1. Turn the ignition switch OFF and disconnect the battery negative (-) terminal.
  2. Disconnect the camshaft position sensor connector (A).
  3. Remove the sensor after loosening the mounting bolt (B).

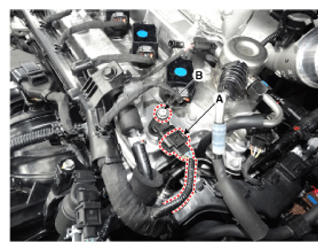

    G12596648Courtesy of HYUNDAI MOTOR AMERICA

[Bank 1/Exhaust]

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Remove the air cleaner.

    (Refer to Engine Mechanical System - "AIR CLEANER ")

  3. Disconnect the camshaft position sensor connector (A).
  4. Remove the camshaft position sensor (B) after loosening the mounting bolt.

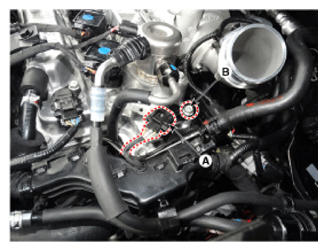

    G12596649Courtesy of HYUNDAI MOTOR AMERICA
