Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.

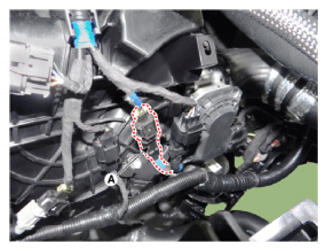

  2. Disconnect the crankshaft position sensor connector (A).
    G12596641Courtesy of HYUNDAI MOTOR AMERICA
  3. Remove the engine room under cover.

    (Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")

  4. Remove the crankshaft position sensor (A) after loosening the mounting bolts.
    G12596642Courtesy of HYUNDAI MOTOR AMERICA
