Repair Procedures: Removal

  1. Air cleaner assembly and air duct.

    (Refer to Engine Mechanical System - "AIR CLEANER ")

  2. Battery and battery tray.

    (Refer to Engine Electrical System - "BATTERY ")

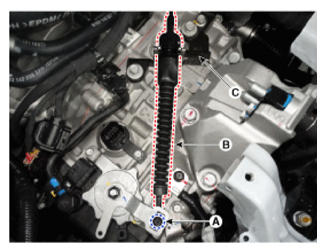

  3. Remove the nut (A) from the Manual Control Lever.
  4. Remove the shift cable (B) from the bracket (C) at transaxle side.
    G12607267Courtesy of HYUNDAI MOTOR AMERICA
  5. Remove the floor console assembly.

    (Refer to Body - "FLOOR CONSOLE ")

  6. Remove the crash pad.

    (Refer to Body - "CRASH PAD ")

  7. Remove the heater and blower.

    (Refer to Heating, Ventilation and Air Conditioning - "HEATER ")

  8. Disconnect the shift cable.

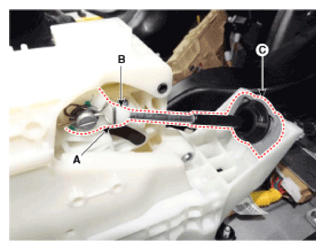

    1. Disconnect the eye-end (B) after removing the snap pin (A).
    2. Remove the cable socket (C).
      G12607268Courtesy of HYUNDAI MOTOR AMERICA

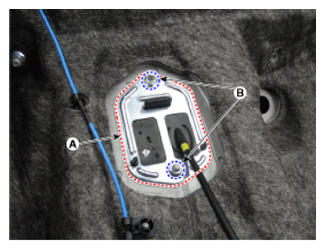

  9. Remove the retainer (A) by loosening the nuts (B-2ea).
    G12607269Courtesy of HYUNDAI MOTOR AMERICA
  10. Remove the shift cable from the vehicle.
