Repair Procedures: Removal
- Turn ignition switch OFF and disconnect the battery negative (-) terminal.

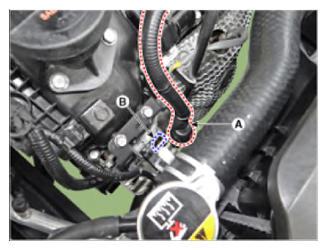

- Remove the alternator mounting nut, and then remove the cable (A) from alternator "B" terminal.
- Disconnect the alternator connector (B).

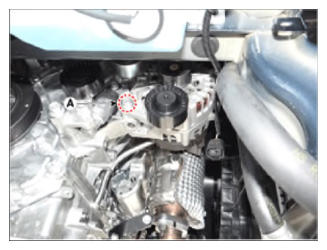

- Remove the alternator upper bolt (A).
Alternator mounting upper bolt:
49.0 - 63.7 N.m (5.0 - 6.5 kgf.m, 36.2 - 47.0 lb-ft)
- Lift the vehicle.
- Remove the engine room under cover.
(Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")
- Remove the drive belt.
(Refer to Engine Mechanical System - "DRIVE BELT ")

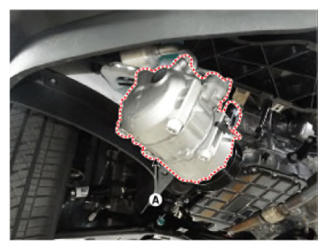

- Disconnect the compressor ECV connector, and then by loosening the mounting bolts, widen the gap between the compressor (A) from the engine to remove the alternator.

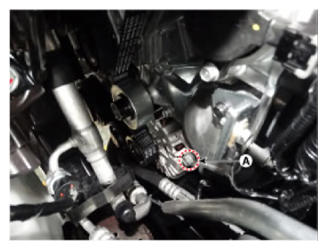

- Remove the alternator lower bolt (A).
Alternator mounting lower bolt:
49.0 - 63.7 N.m (5.0 - 6.5 kgf.m, 36.2 - 47.0 lb-ft)

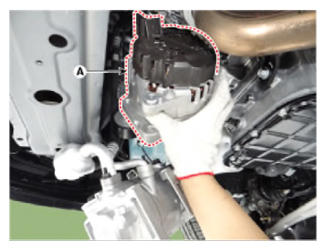

- Remove the alternator (A).
