Repair Procedures: Disassembly

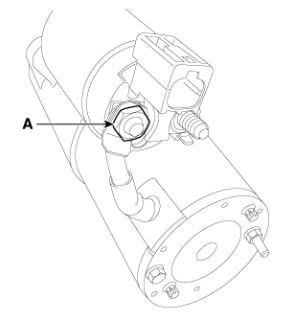

Disconnect the M-terminal (A) on the starter solenoid assembly.

Courtesy of HYUNDAI MOTOR AMERICA

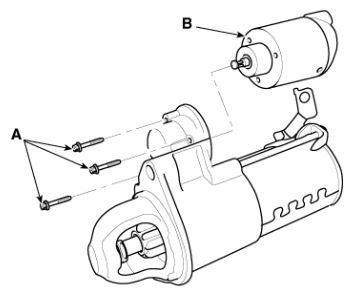

After loosening the screws (A), detach the starter solenoid assembly (B).

Courtesy of HYUNDAI MOTOR AMERICA
Loosen the through bolts (A).

Courtesy of HYUNDAI MOTOR AMERICA

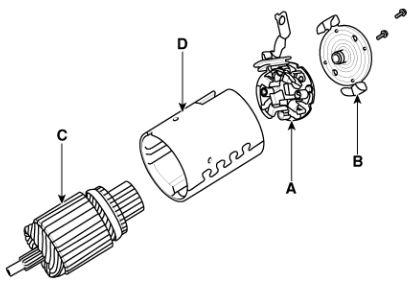

Remove the brush holder assembly (A), rear bracket assembly (B) after loosening the mounting screws.
Remove the armature assembly (C) and york assembly (D).

Courtesy of HYUNDAI MOTOR AMERICA

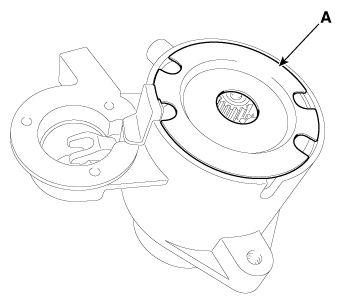

Remove the shield (A).

Courtesy of HYUNDAI MOTOR AMERICA

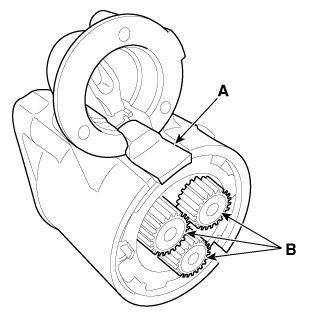

Remove the lever packing (A) and the planet gear (B).

Courtesy of HYUNDAI MOTOR AMERICA

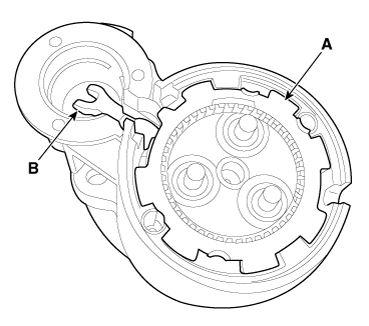

Remove the clutch set assembly (A) and lever (B).

Courtesy of HYUNDAI MOTOR AMERICA

NOTE:

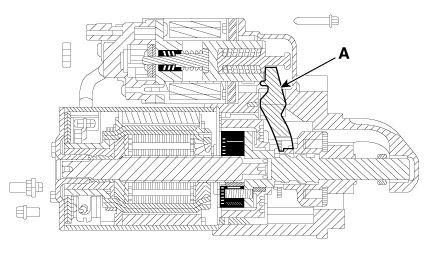

Beware of the direction of the lever (A).

Courtesy of HYUNDAI MOTOR AMERICA

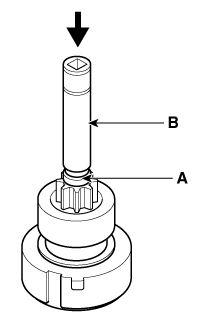

Press the stopper (A) using a socket (B).

Courtesy of HYUNDAI MOTOR AMERICA

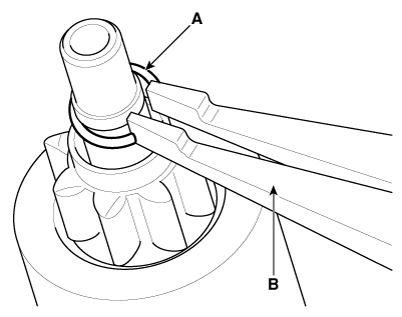

Remove the stop ring (A) using the stop ring pliers (B).

Courtesy of HYUNDAI MOTOR AMERICA

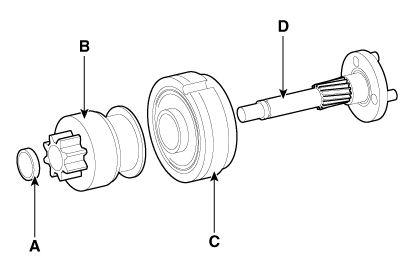

Remove the stopper (A), overrunning clutch (B), internal gear (C) and planet shaft (D).

Courtesy of HYUNDAI MOTOR AMERICA

NOTE:

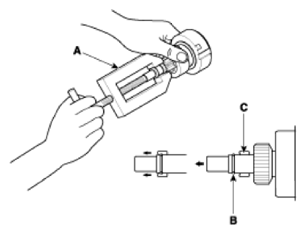

Using a suitable pulling tool (A), pull the overrunning clutch stop ring (B) over the stopper (C).

Courtesy of HYUNDAI MOTOR AMERICA
