Rear Wheel Alignment: Camber

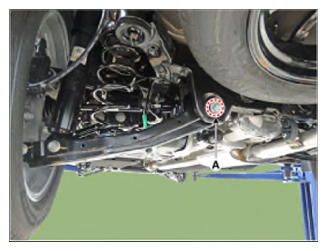

- Loosen the nut holding the rear lower arm cam bolt (A).
- Adjust rear camber by turning the rear lower arm cam bolt (A) clockwise or counter clockwise. Rear camber adjustment should be made by turning the right and left cam bolt by the same amount.
Camber angle : - 1.0° ± 0.5°
- When completing the toe adjustment, tighten the nut to specified torque.
Tightening torque:
137.3 - 156.9 N.m (14.0 - 16.0 kgf.m, 101.3 - 115.7 lb-ft)
