Components Location

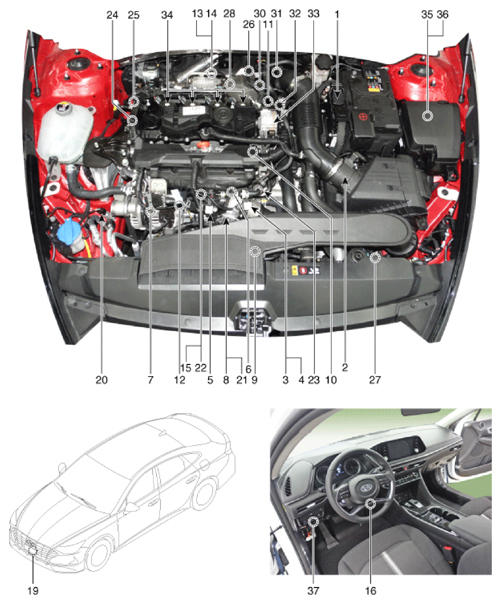

G14625647Courtesy of HYUNDAI MOTOR AMERICA

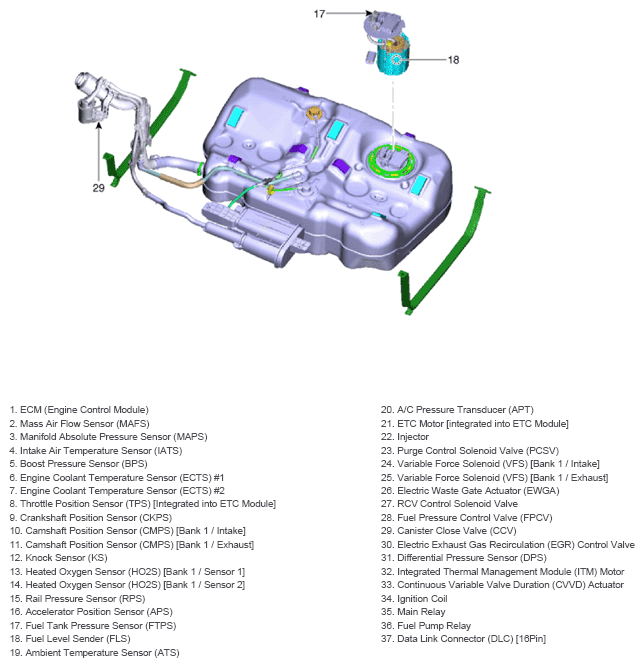

G14625648Courtesy of HYUNDAI MOTOR AMERICA

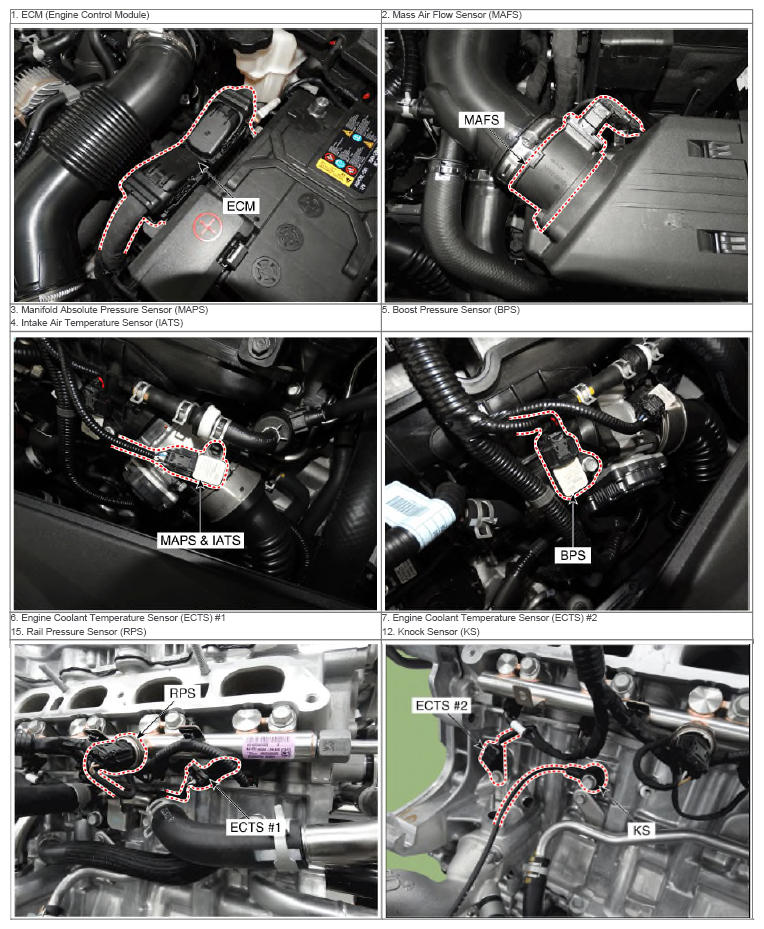

G14625649Courtesy of HYUNDAI MOTOR AMERICA

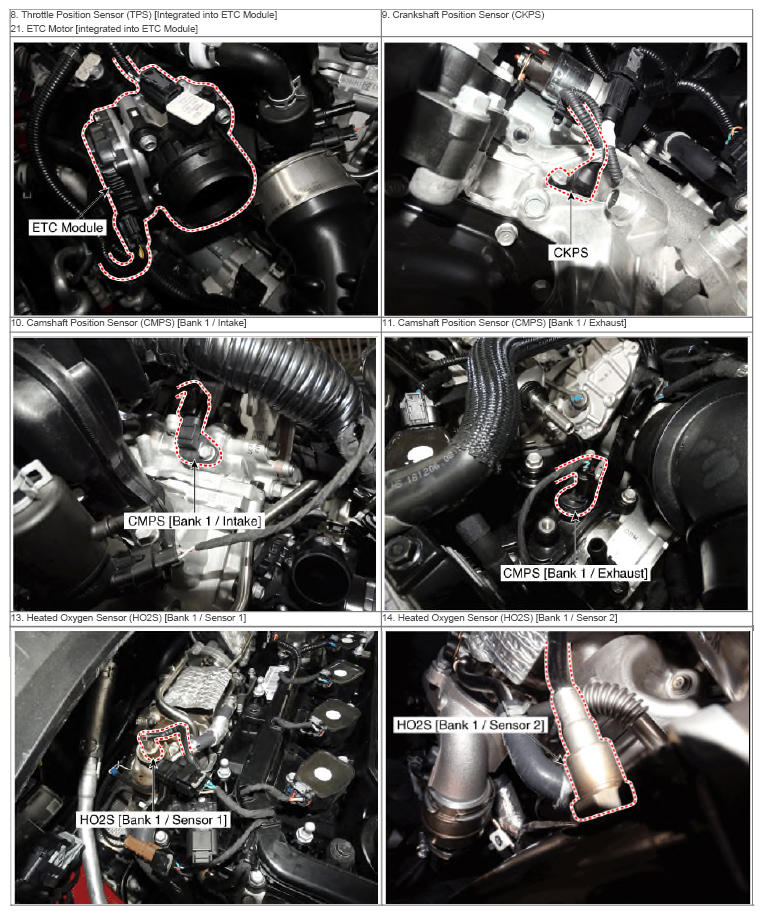

G14625650Courtesy of HYUNDAI MOTOR AMERICA

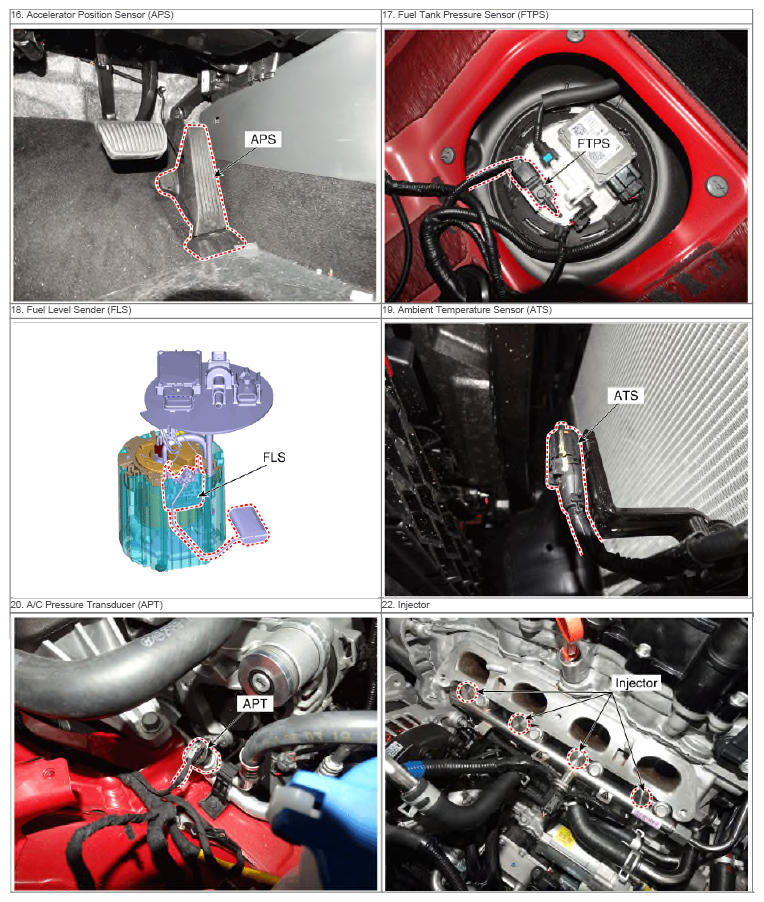

G14625651Courtesy of HYUNDAI MOTOR AMERICA

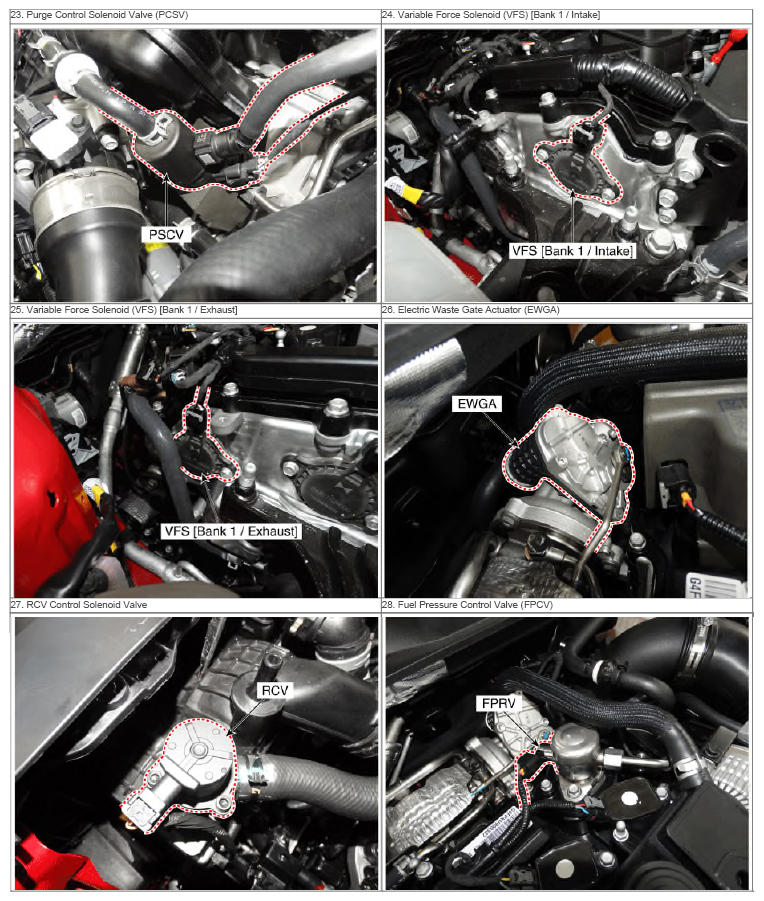

G14625652Courtesy of HYUNDAI MOTOR AMERICA

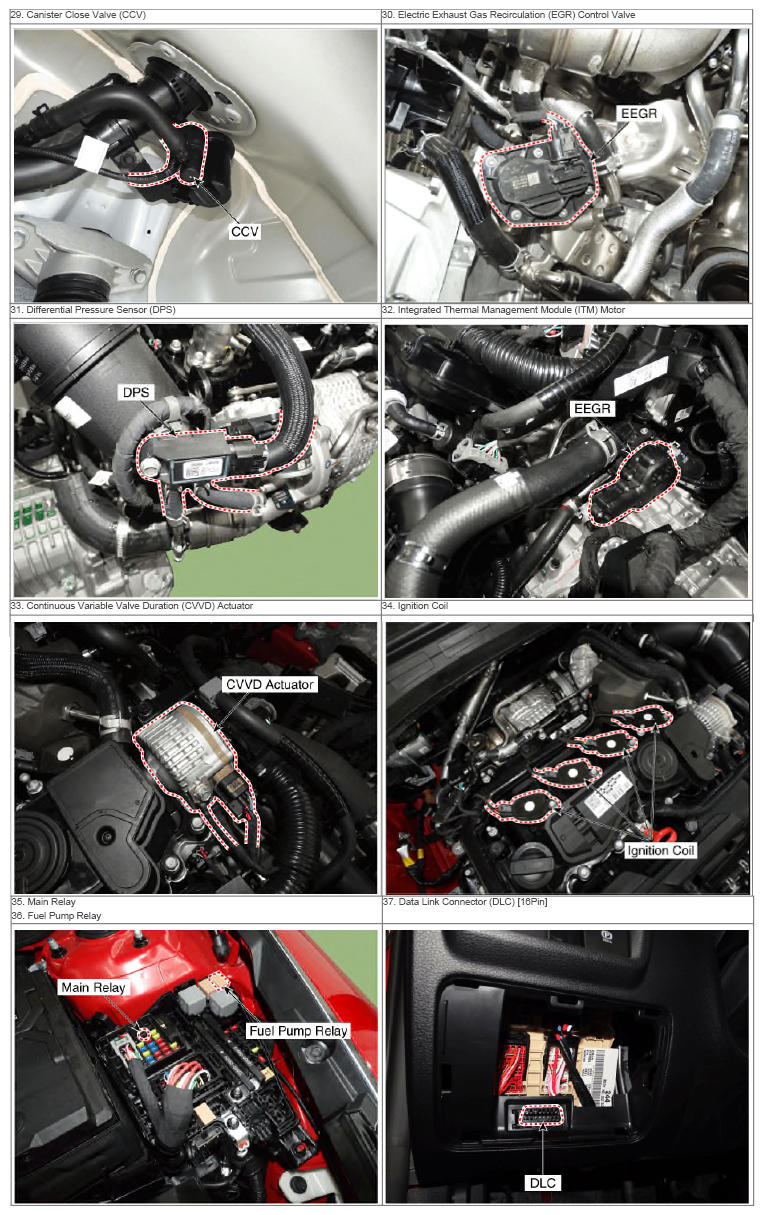

G14625653Courtesy of HYUNDAI MOTOR AMERICA
