Components & Components Location: Components

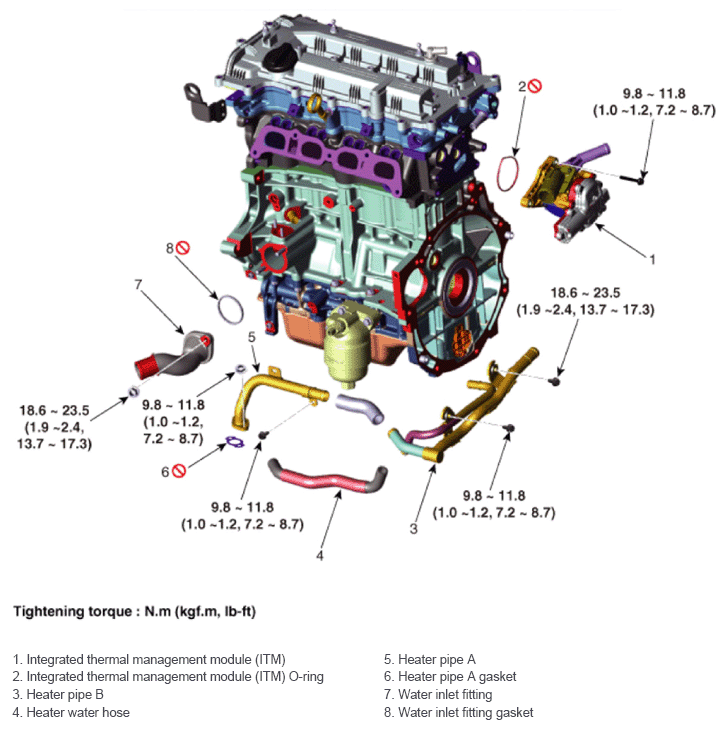

Fig 1: Thermal Management Module Motor Components Location With Torque Specification
G14625804Courtesy of HYUNDAI MOTOR AMERICA
