Repair Procedures: Removal
- Turn ignition switch OFF and disconnect the battery negative (-) cable.
- Remove the air cleaner assembly.
(Refer to Engine Mechanical System - "AIR CLEANER ")

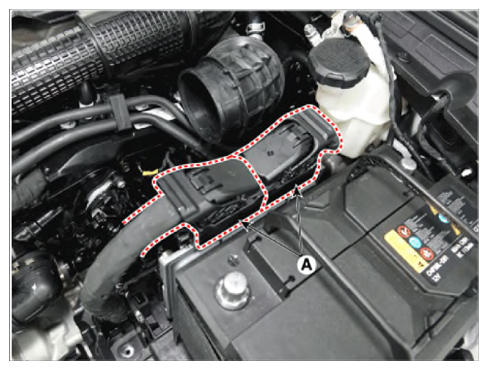

- Disconnector the ECM connector (A).

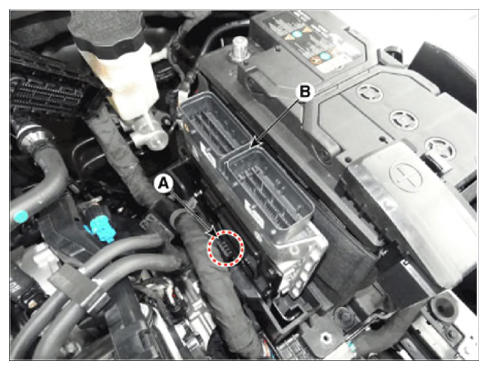

- Loosening the fixing hook (A), remove the ECM (B).

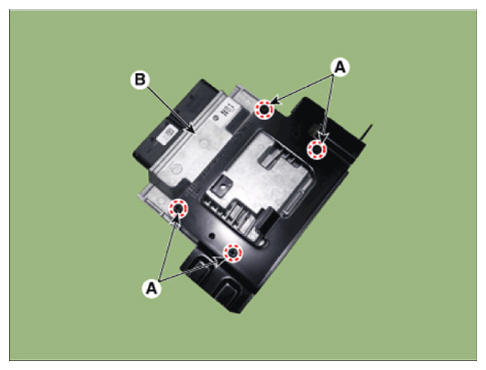

- After removing the installation bolts (A), remove the ECM (B) from the braket.
Tightening torque:
9.8 - 11.7 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.6 lb-ft)
