Components Location

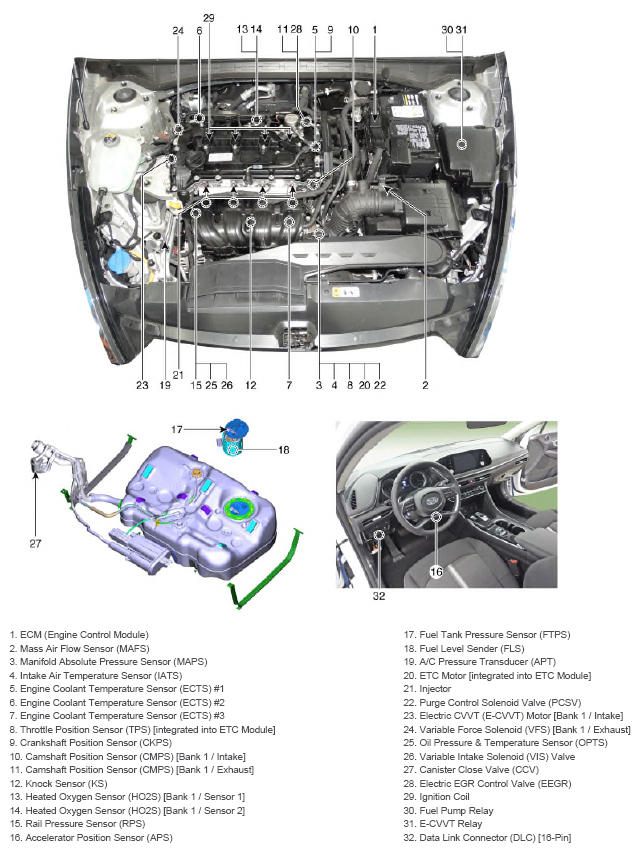

G14629121Courtesy of HYUNDAI MOTOR AMERICA

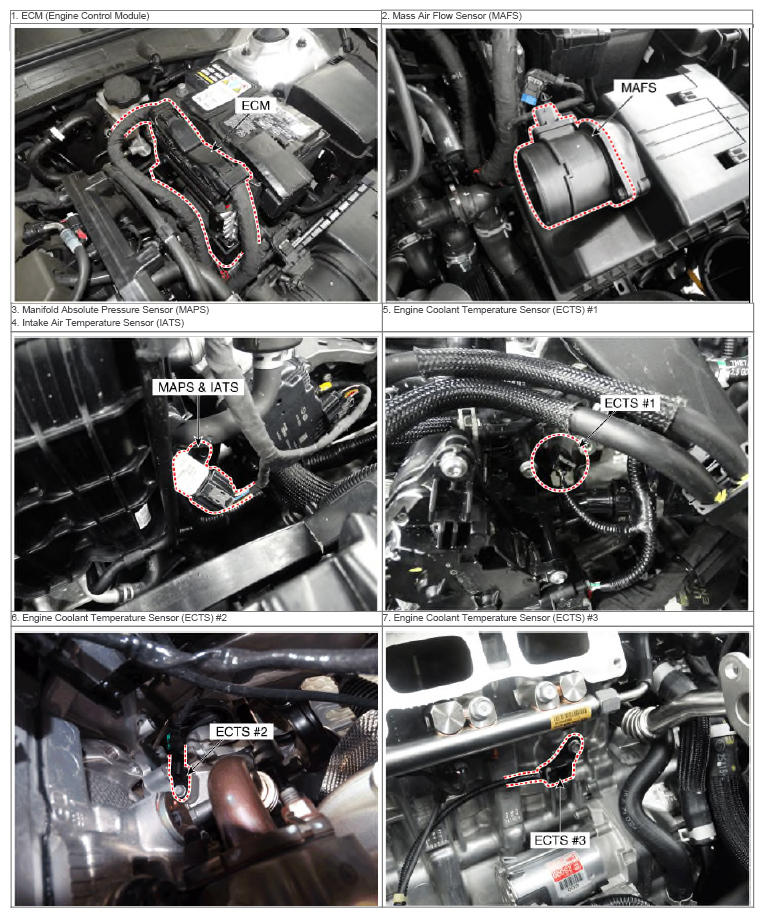

G14629122Courtesy of HYUNDAI MOTOR AMERICA

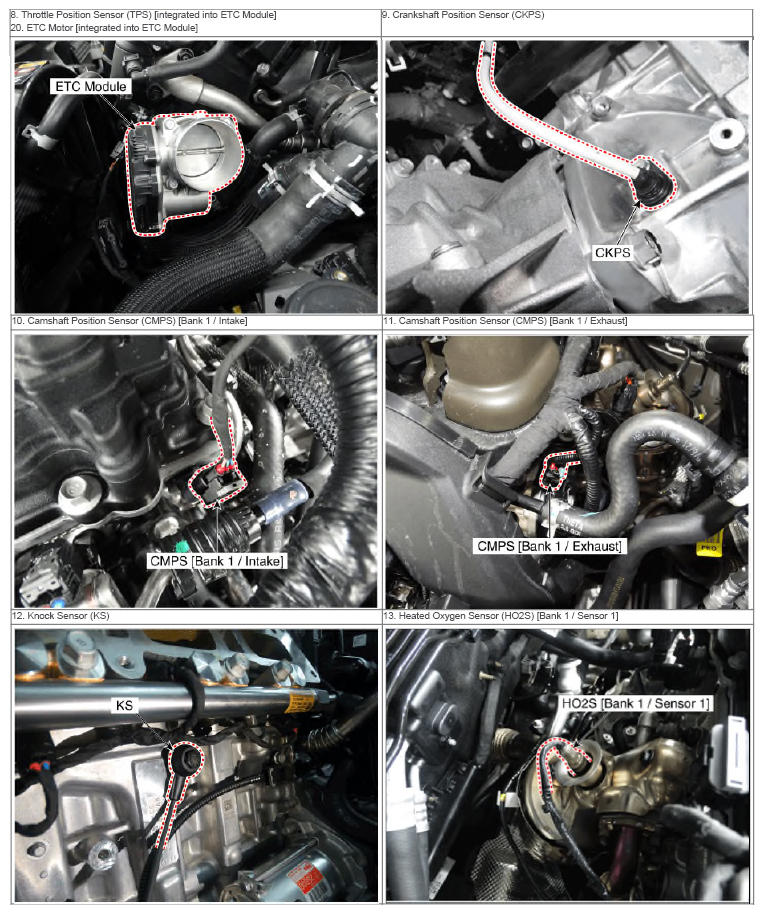

G14629123Courtesy of HYUNDAI MOTOR AMERICA

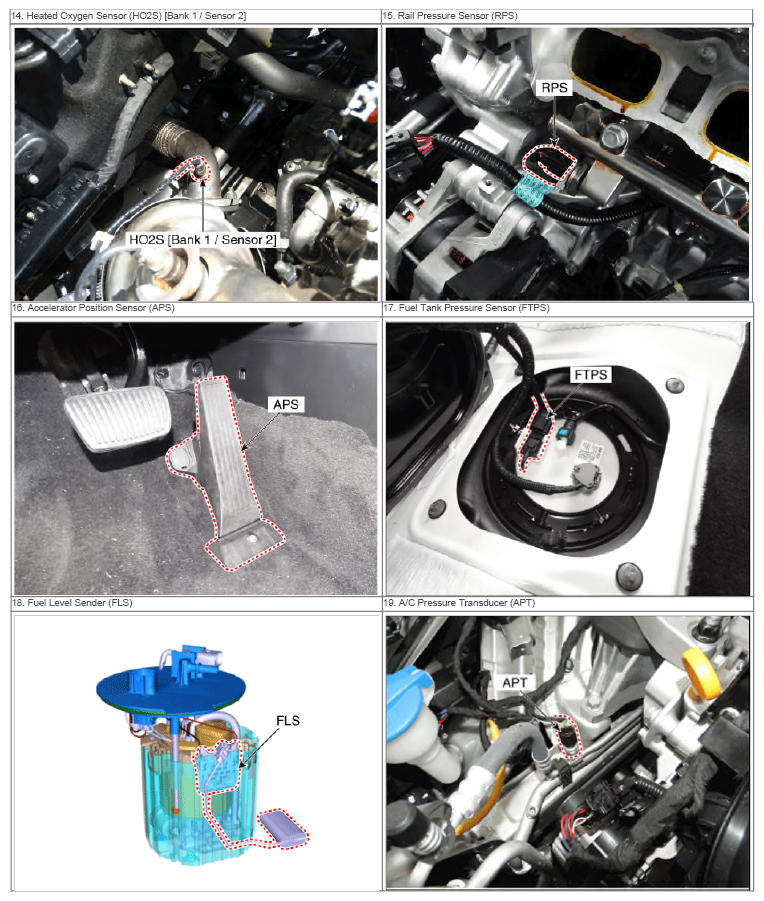

G14629124Courtesy of HYUNDAI MOTOR AMERICA

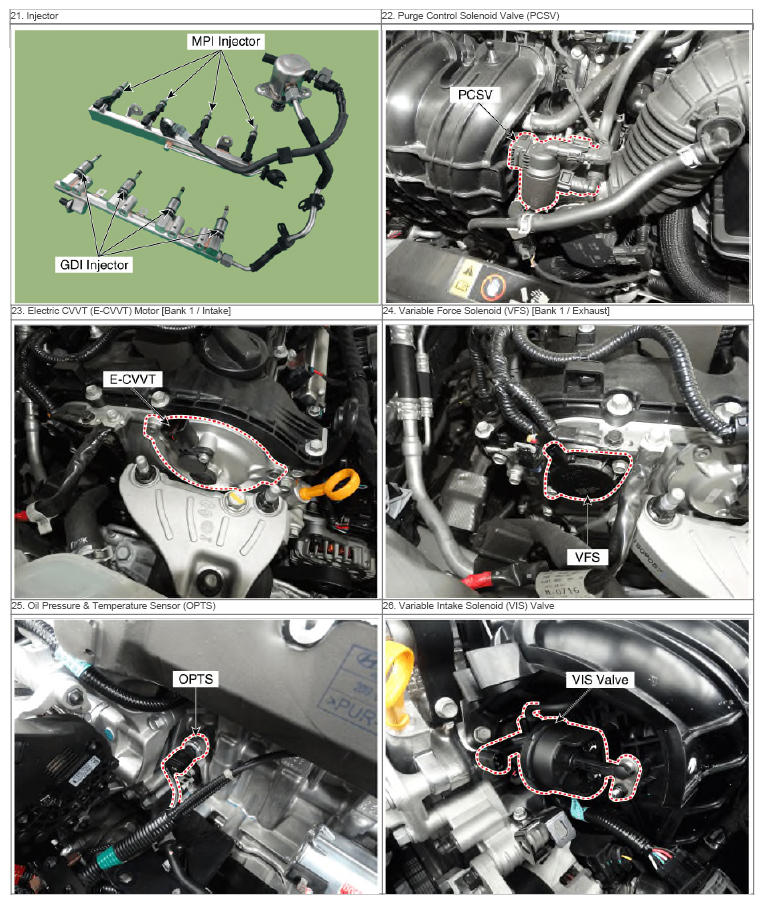

G14629125Courtesy of HYUNDAI MOTOR AMERICA

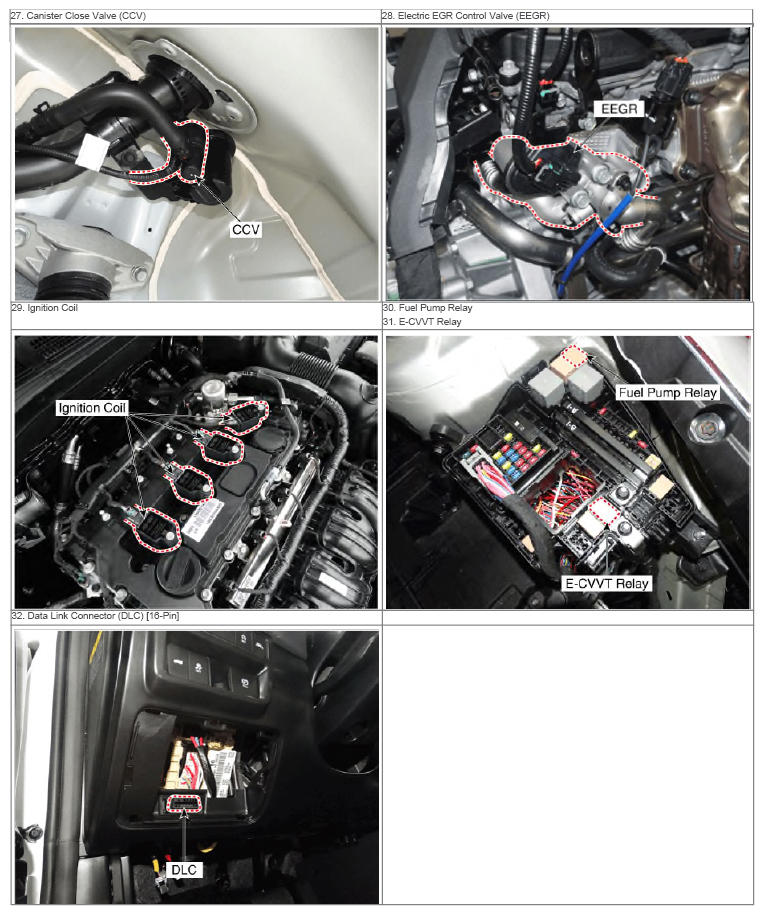

G14629126Courtesy of HYUNDAI MOTOR AMERICA
