Throttle Position Sensor (TPS): Notes

Throttle angle (°) Output Voltage (V) [Vref=5V]
TPS1 TPS2
0 0.5 4.5
10 0.96 4.05
20 1.41 3.59
30 1.87 3.14
40 2.32 2.68
50 2.78 2.23
60 3.23 1.77
70 3.69 1.32
80 4.14 0.86
90 4.6 0.41
91.2 4.65 0.35
C. T (0°) 0.5 4.5
W.O. T (82°) 4.23 0.77

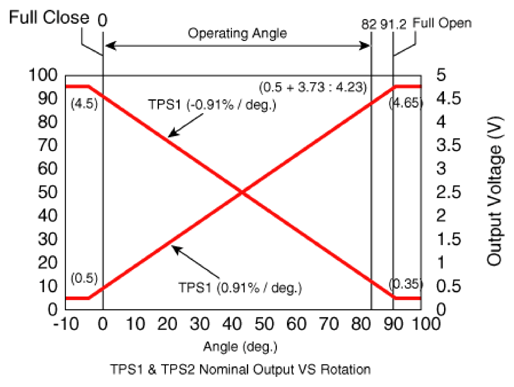

G14629146Courtesy of HYUNDAI MOTOR AMERICA
