Repair Procedures: Installation

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA

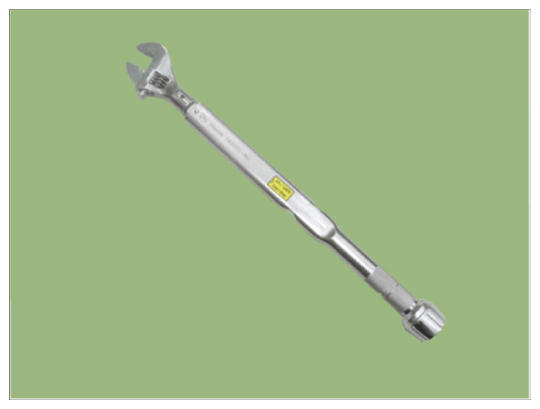

• Using a spanner torque wrench (27 mm).

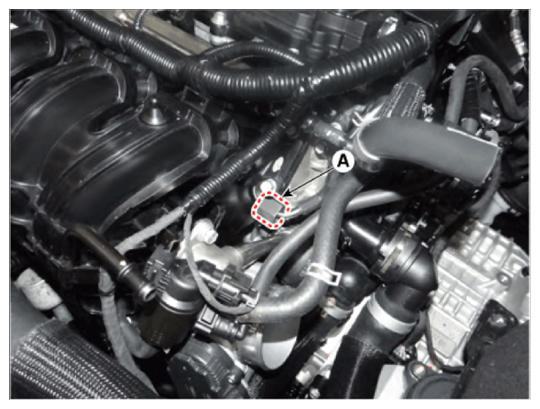

  Courtesy of HYUNDAI MOTOR AMERICA

• Do not reuse the high pressure fuel pipe.
• Note that do not deforming the high pressure fuel pipe.
• Install the component with the specified torques.
• Install the high pressure fuel pipe and then check the oil leakage.

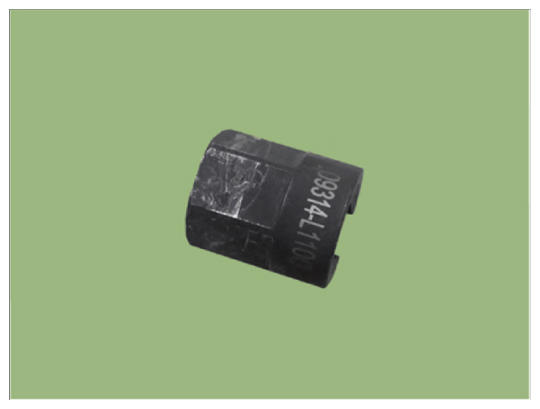

• When Installing the high pressure fuel pipe, using a SST (SST No.: 09314-L1100).

1. When reusing the injector refer to below.

[GDI Injector]

• Do not reuse the mounting bolt.
• Do not reuse the injector fixing clip.

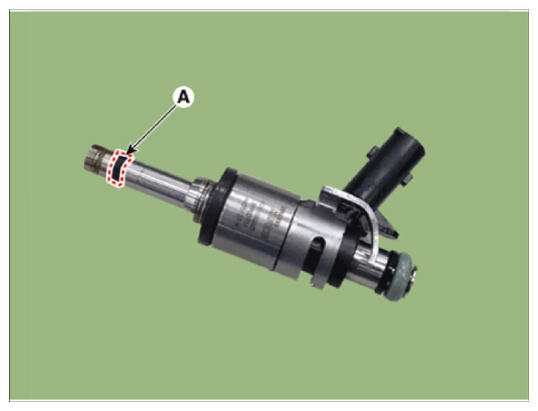

  Courtesy of HYUNDAI MOTOR AMERICA

• Be careful not to apply oil to combustion seal.

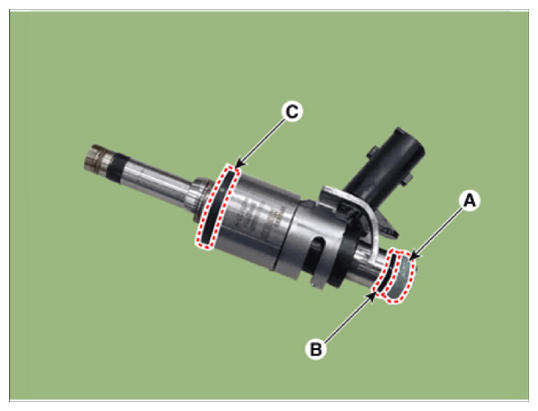

• Do not reuse the O-ring (A), support disk (B), rubber washer (C).

  Courtesy of HYUNDAI MOTOR AMERICA

• When replacing the rubber washer, the steal plate part should be faced the cylinder installation part and the rubber plate part should be faced the injector body part.
• Apply the engine oil to the injector O-ring.
• When inserting the injector, be careful not to damage the injector tip.

[MPI Injector]

• Do not reuse the O-ring (A).

  Courtesy of HYUNDAI MOTOR AMERICA

• Apply the engine oil to the injector O-ring.
• When inserting the injector, be careful not to damage the injector tip.
