Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) terminal.

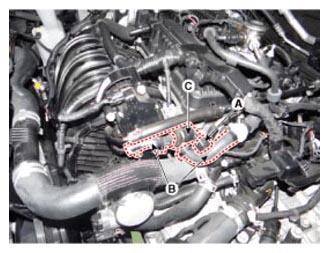

  2. Disconnect the purge control solenoid valve connector (A) and vapor hoses (B).
  3. Remove the purge control solenoid valve (A).
    G13035083Courtesy of HYUNDAI MOTOR AMERICA
