Repair Procedures: Removal

  1. Air cleaner assembly and air duct.

    (Refer to Engine Mechanical System - "AIR CLEANER ")

  2. Battery and battery tray.

    (Refer to Engine Electrical System - "BATTERY ")

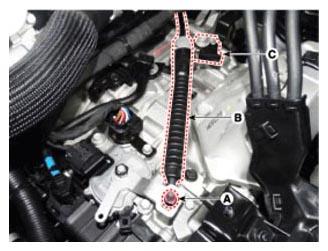

  3. Remove the nut (A) from the manual control lever.
  4. Remove the shift cable (B) from the bracket (C) at transaxle side.
    G13035517Courtesy of HYUNDAI MOTOR AMERICA
  5. Remove the floor console assembly.

    (Refer to Body - "FLOOR CONSOLE ")

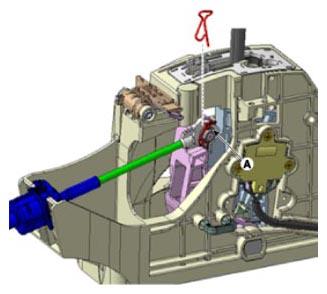

  6. Remove the snap pin (A).
    G13035518Courtesy of HYUNDAI MOTOR AMERICA

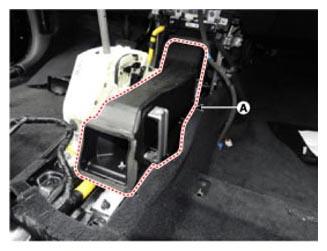

  7. Remove the air duct (A).
    G13035519Courtesy of HYUNDAI MOTOR AMERICA

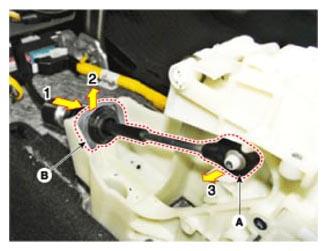

  8. Disconnect the shift cable.
    1. Disconnect the cable bracket (B) from the shift lever after pushing the lock.
    2. Disconnect the cable holer (A) from the shift lever.
    G13035520Courtesy of HYUNDAI MOTOR AMERICA
  9. Remove the airbag module.

    (Refer to Restraint - "AIRBAG MODULE ")

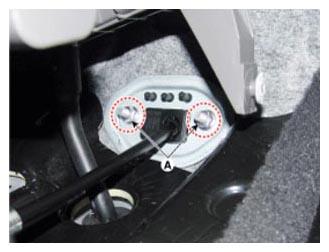

  10. Disconnect the shift cable retainer (B) after removing the nuts.
  11. Remove the shift cable by pulling it toward the interior.
    G13035521Courtesy of HYUNDAI MOTOR AMERICA
