Repair Procedures: Installation
- To install, reverse the removal procedure.

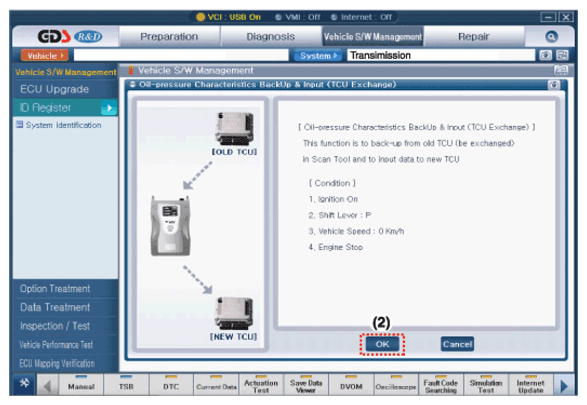

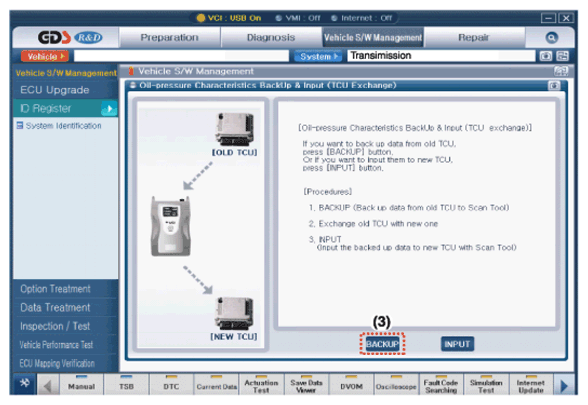

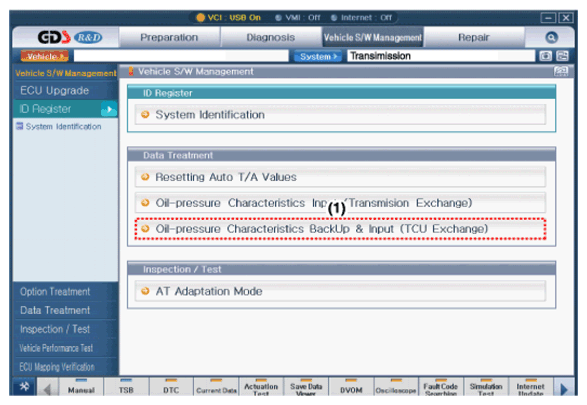

- Perform the oil pressure characteristics input procedure using the GDS when replacing with a new TCM.
- Perform the procedures related in the ECM after replacing the TCM.
(Refer to Engine Control/Fuel System - "ENGINE CONTROL MODULE ")
- Perform TCM learning after replacing the transaxle to prevent slow transaxle response, jerky acceleration and jerky startup.
(Refer to Automatic Transaxle Control System - "REPAIR PROCEDURES ")
